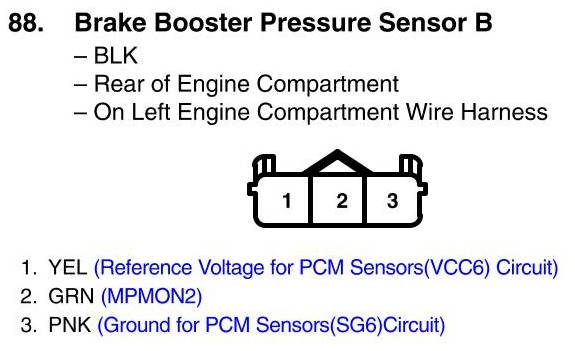

View 88 - Brake Booster Pressure Sensor B Connector View
View 88 - Brake Booster Pressure Sensor B Connector View
