Main Bearing Size Codes

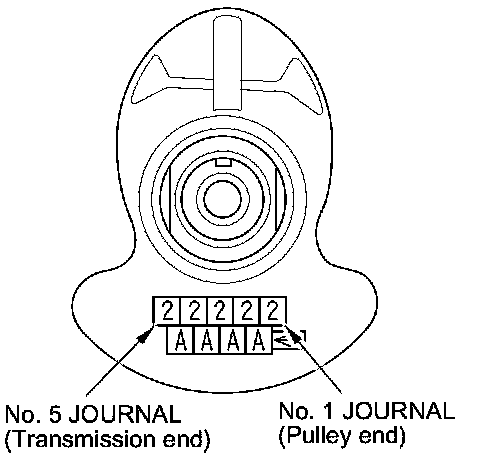

Block Bore Code Location






Main Journal Code Location

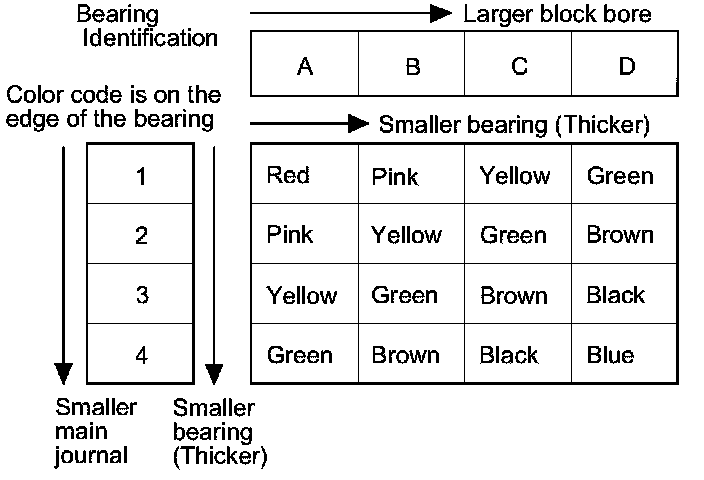

Main Bearing Selection
