Removal and Replacement
Drive Belt Replacement 1.

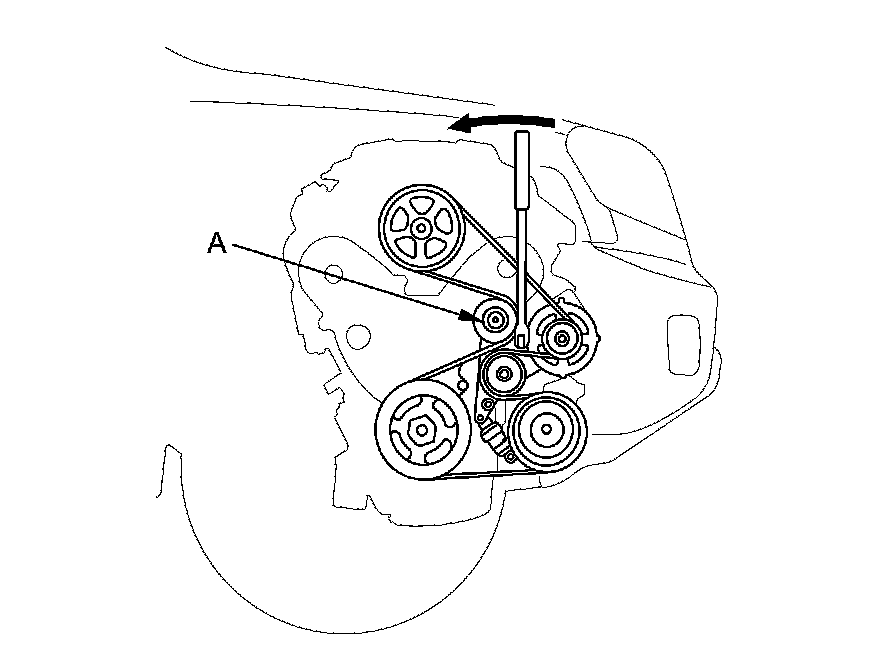

Set a socket wrench on the
drive belt auto-tensioner (A), and slowly turn the wrench in the direction of the rotation arrow, then remove the drive belt.
NOTE: This is a hydraulic type auto-tensioner, so you must turn the wrench slowly for at least 3 seconds.
2.
Install the new belt in the reverse order of removal.
