Rear Vision Camera: Service and Repair
Rearview Camera Removal/Installation'11-12 Models 4-Door 1.
Remove the trunk lid trim panel
Interior Trim Removal/Installation - Trunk Lid.
2.

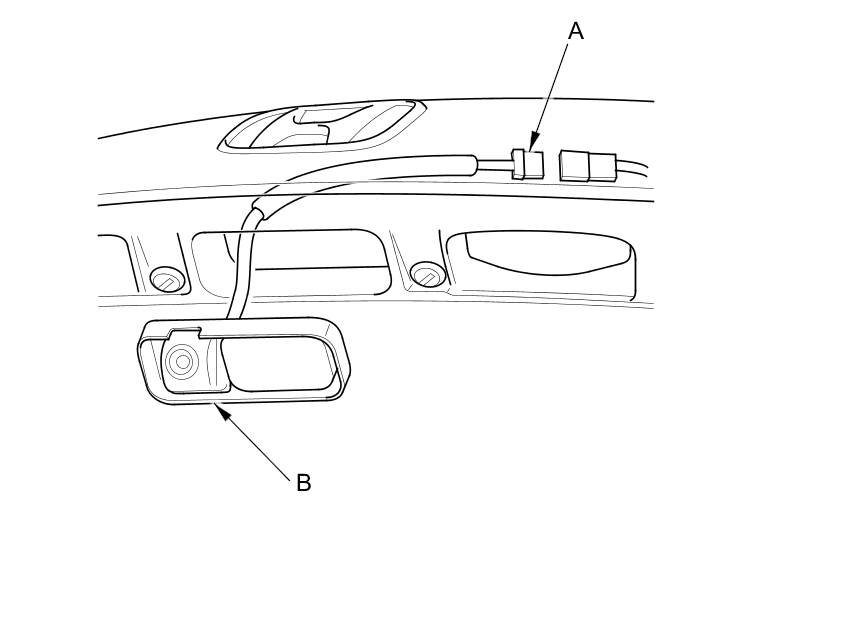

Disconnect the connector (A) from the rearview
camera (B), and remove it.
3.
Install the
camera in the reverse order of removal.
