Cabin Ventilation Duct: Service and Repair
Rear Air Outlet ReplacementNOTE: Take care not to scratch the body.
1.
Remove the rear bumper
Service and Repair.
2.

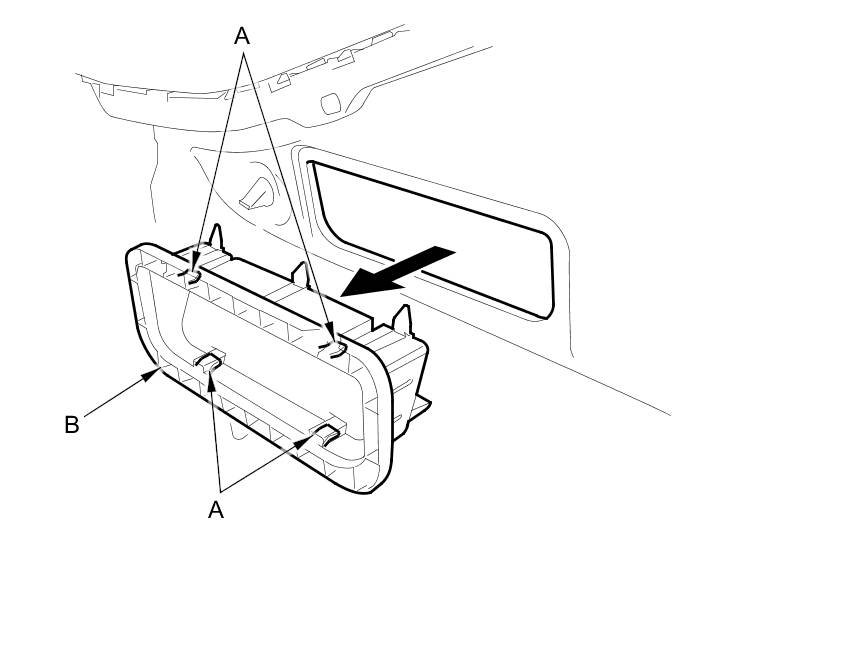

Release the hooks (A), then remove the rear air outlet (B).
3.
Install the air outlet by pushing on the hook areas until the hooks snap into place securely.
