Compass: Service and Repair




Electrical Compass Unit Removal/Installation

1. Remove the rear shelf:

- 2-door Service and Repair
- 4-door Service and Repair

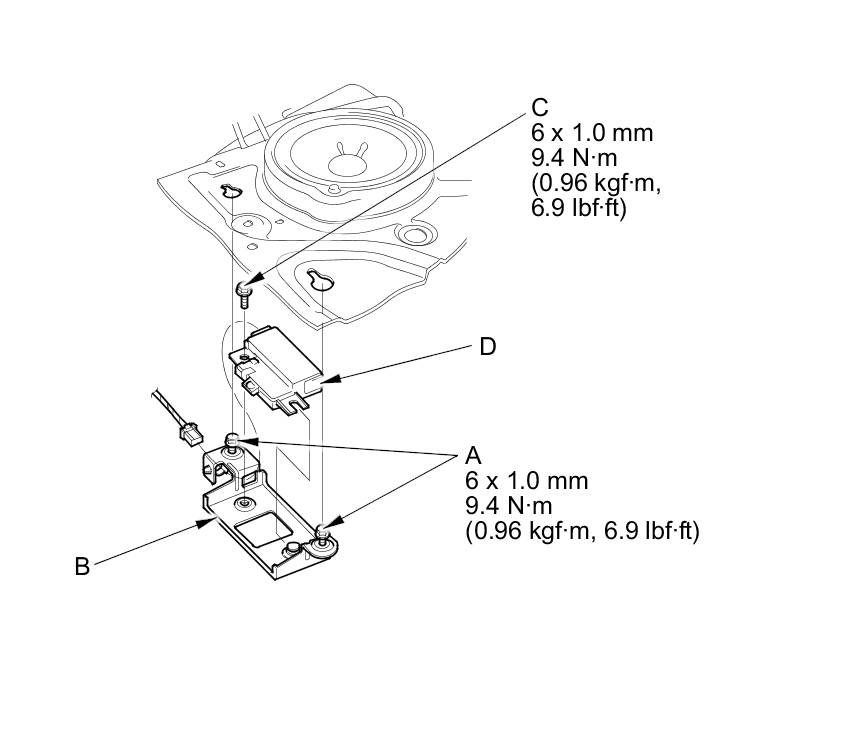

2. Loosen the bolts (A), then pull out the electrical compass unit bracket (B).





3. Disconnect the connector, and remove the bolt (C), then pull out the electrical compass unit (D).

4. Install the electrical compass unit in the reverse order of removal.

NOTE: If you replaced the electrical compass unit, set the compass zone Adjustments.
