Fog/Driving Lamp Bulb: Service and Repair
Fog Light Bulb Replacement 1.
For right side, remove the splash shield. For left side, remove the inner fender.
2.
Disconnect the 2P connector (A) from the fog light (B).

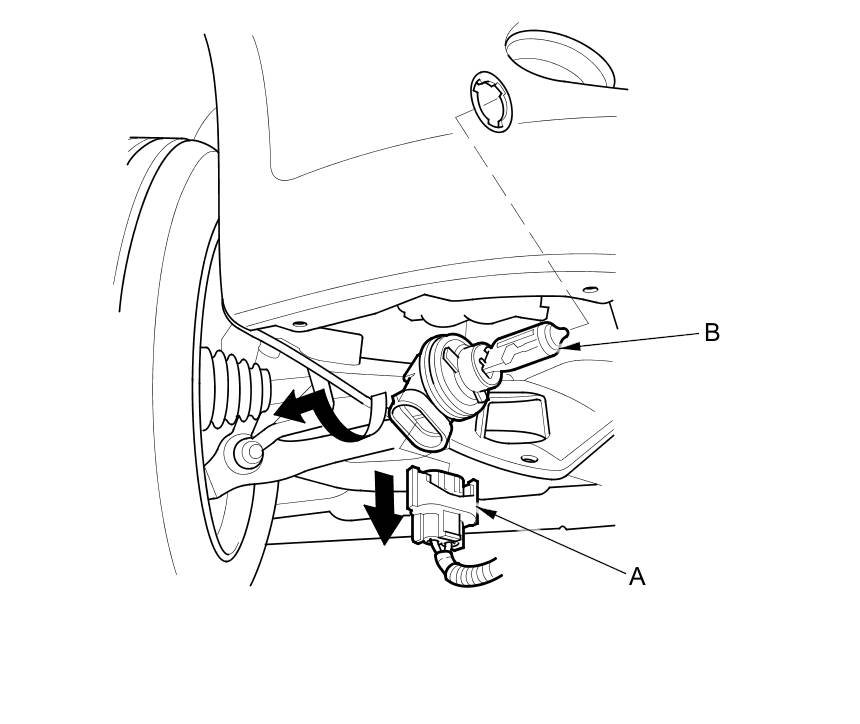

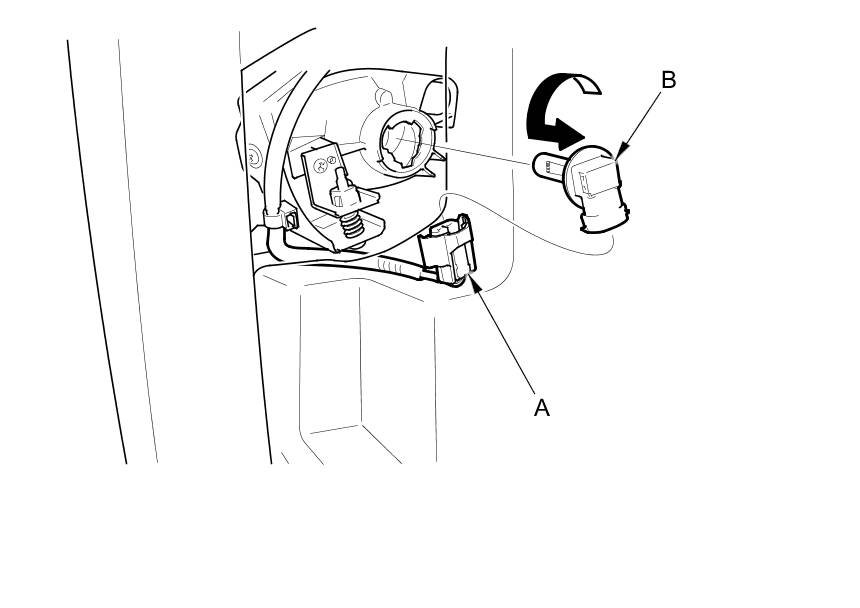

Right sideLeft side 3.
Turn the bulb socket 45 ° counterclockwise to remove it from the housing.
4.
Install a new bulb in the reverse order of removal.
