DVD Player: Service and Repair

DVD Player Unit Removal and Installation

Removal

1. Center Console Box Mat

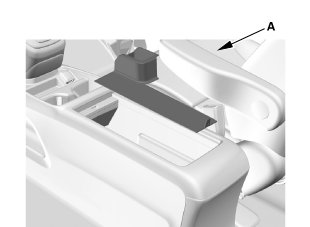

1. Remove the rubber mat (A).

2. DVD Player Unit Garnish

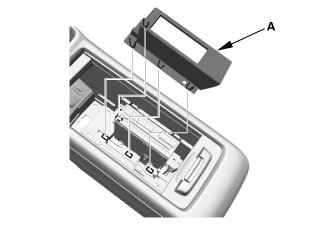

1. Remove the DVD player unit garnish (A).

3. DVD Player Unit Assembly





NOTE: Eject the discs before removing the DVD player unit to prevent damaging the CD/DVD player's load mechanism.

1. Remove the bolts.

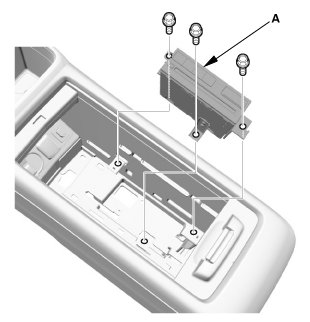

2. Remove the DVD player unit (A).

4. DVD Player Unit

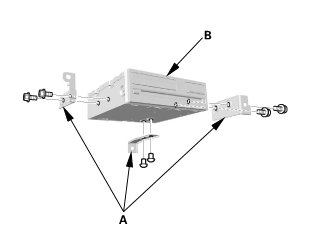

1. Remove the brackets (A) from the DVD player unit (B).

Installation

1. DVD Player Unit

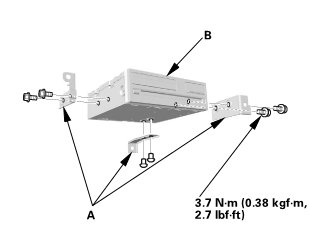

1. Install the brackets (A) to the DVD player unit (B).

2. DVD Player Unit Assembly





1. Install the bolts.

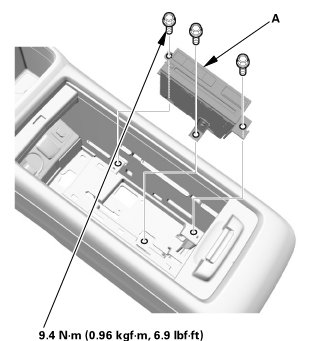

2. Install the DVD player unit (A).

3. DVD Player Unit Garnish





1. Install the DVD player unit garnish (A).

4. Center Console Box Mat





1. Install the rubber mat (A).
