Hood Sensor/Switch (For Alarm): Testing and Inspection

Security Hood Switch Test

Removal

1. Hood Latch





1. Remove the bolts (A), then remove the hood latch (B) from the body. Disconnect the hood opener cable (C) from the latch.

2. Disconnect the connector (D).

Test

1. Security Hood Switch - Test









1. Check for continuity between the terminals in each switch position according to the table.

2. If the continuity is not as specified, the security hood switch is faulty; replace the hood latch (A).

Installation

1. Hood Latch




NOTE: Apply multipurpose grease to the hood latch as indicated by the arrows.

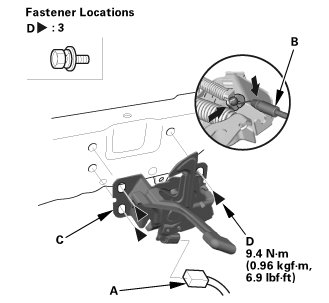

1. Connect the connector (A).

2. Connect the hood opener cable (B).

3. Install the hood latch (C), then install the bolts (D).

2. Hood Latch - Adjustment

1. Do the hood adjustment. Adjustments
