Thermal Limiting Fuse: Service and Repair






A/C Compressor Thermal Protector Removal and Installation

Removal

1. Vehicle Lift

1. Raise the vehicle on a lift, and make sure it is securely supported.

2. Front Splash Shield





1. Remove the bolts (A), then remove the clips (B) that secure the front inner fender and the front splash shield (C) to the body.

2. From under the front bumper (D), remove the clips (E).

3. From under the body, remove the clips (F), then pull out the front splash shield.

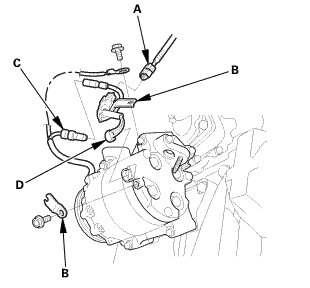

3. A/C Compressor Thermal Protector





1. Disconnect the A/C compressor clutch connector (A).

2. Remove the holders (B).

3. Disconnect the field coil connector (C).

4. Remove the thermal protector (D).

Installation

1. A/C Compressor Thermal Protector





1. Replace the thermal protector (A) with a new one, and apply silicone grease (B) to the bottom of the thermal protector.





2. Install the thermal protector (A).

3. Connect the field coil connector (B).

4. Install the holders (C).

5. Connect the A/C compressor clutch connector (D).

2. Front Splash Shield





1. Install the front splash shield (A), then install the bolts (B) and the clips (C, D). Make sure the clips snap into place securely.
