Dashboard Vent Removal/Installation
Dashboard Vent Removal/InstallationNOTE:
-
Take care not to scratch the dashboard or the related parts.
-
Driver's outside vent is shown; driver's inside vent is similar.
1.
Remove the instrument panel
Instrument Panel Removal / Installation.
2.

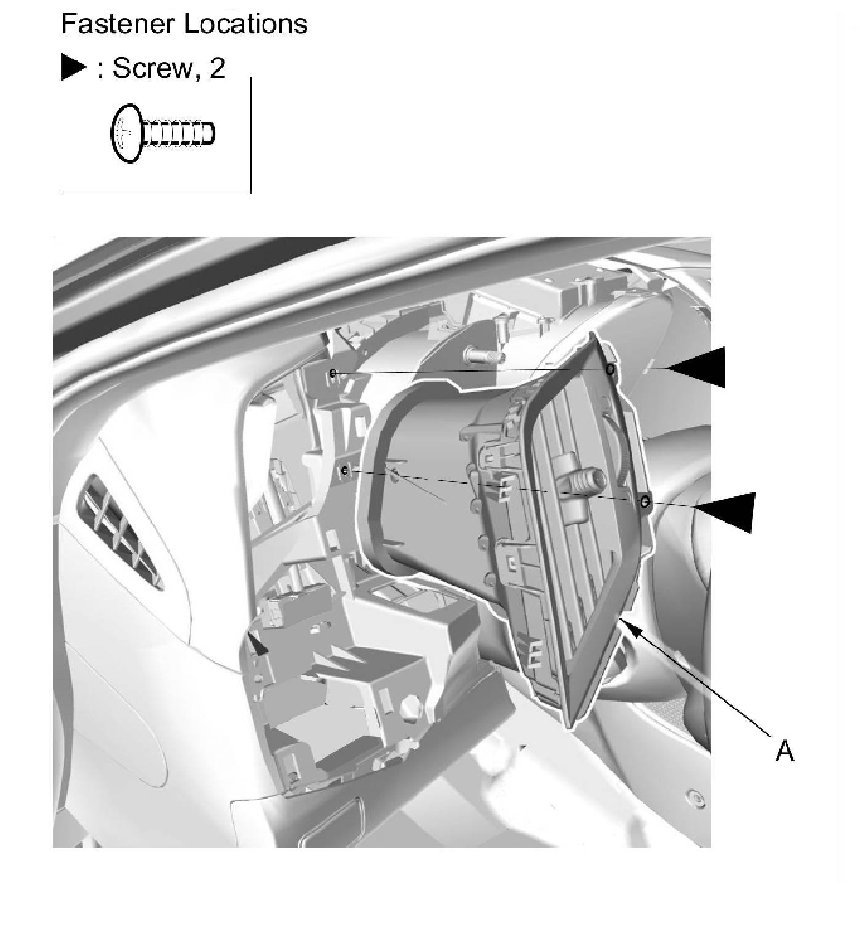

Remove the screws, then pull out on the dashboard vent (A).
3.
Install the dashboard vent in the reverse order of removal.
