Traction Control Switch: Testing and Inspection




Service Information

VSA Off Switch Test

Removal

1. Driver's Dashboard Lower Cover

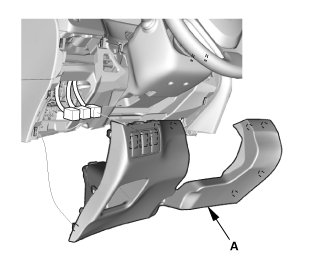

1. Remove the driver's dashboard lower cover (A).

2. Disconnect the connectors.

Test

1. VSA Off Switch - Test

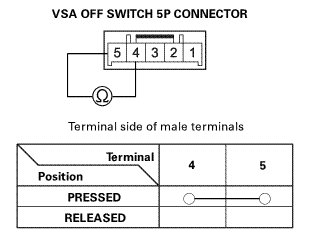

1. On the switch side, check for continuity between the connector terminal in each switch position according to the table.
* If the switch does not work as described in the table, replace the switch.

* If the switch tests OK, go to step 2.





2. On the switch side, check for continuity between connector terminals No. 1 and No. 2. There should be continuity at all times.
* If the continuity is not as specified, remove the cover, and replace the bulb.

Installation

1. Driver's Dashboard Lower Cover





1. Connect the connectors.

2. Install the driver's dashboard lower cover (A).
