CMP Sensor Removal And Installation




Service Information

CMP Sensor Removal and Installation

Removal

1. Air Cleaner

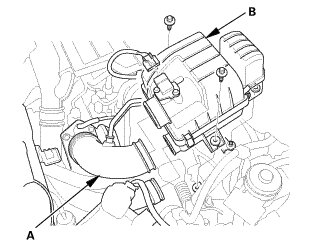

1. Disconnect the intake air duct (A) from the air cleaner (B).

2. Remove the air cleaner.

2. CMP Sensor





1. Disconnect the connector.

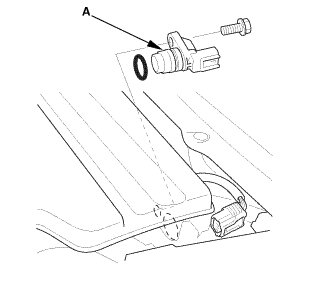

2. Remove the CMP sensor (A).

Installation

1. CMP Sensor

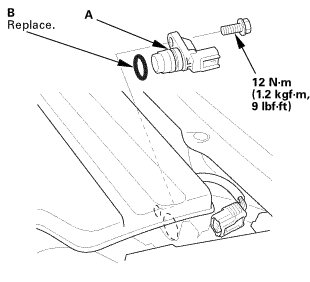

1. Install the CMP sensor (A) with a new O-ring (B).

2. Connect the connector.

2. Air Cleaner





1. Install the air cleaner (A).

2. Connect the intake air duct (B) to the air cleaner.
