Removal and Replacement




Service Information

CKP Sensor Removal and Installation

Removal

1. Vehicle - Lift

1. Raise the vehicle on a lift, and make sure it is securely supported.

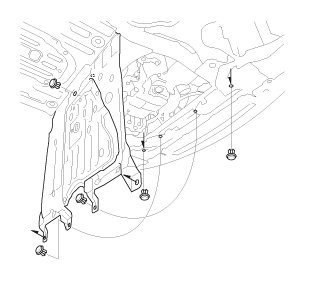

2. Engine Under Cover Front as Needed





1. Remove the front engine under cover as needed.

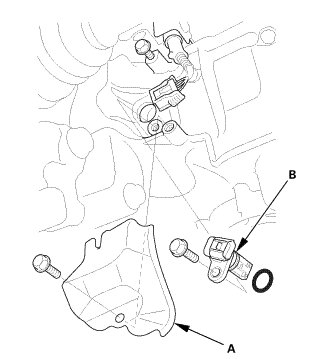

3. CKP Sensor





1. Remove the CKP sensor cover (A).

2. Remove the CKP sensor (B).

Installation

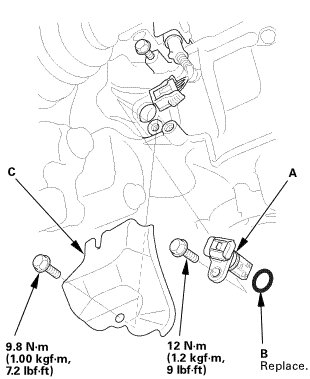

1. CKP Sensor





1. Install the CKP sensor (A) with a new O-ring (B).

2. Install the CKP sensor cover (C).

3. Connect the connector.

2. Engine Under Cover Front as Needed





1. Install the front engine under cover.

3. HDS DLC - Connection





1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

2. Turn the ignition switch to ON (II).

3. Make sure the HDS communicates with vehicle. If it does not communicate, go to the DLC circuit troubleshooting.

4. CKP Pattern Clear/CKP Pattern Learn

1. Select CRANK PATTERN in the ADJUSTMENT MENU with the HDS.

2. Select CRANK PATTERN CLEAR, and clear the CKP pattern.

3. Select CRANK PATTERN LEARNING with the HDS, and follow the screen prompts.
