Engine Mode Switch: Service and Repair




Service Information

ECON Switch Removal and Installation

Removal

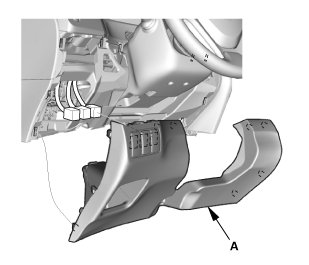

1. Driver's Dashboard Lower Cover





1. Remove the driver's dashboard lower cover (A).

2. Disconnect the connectors.

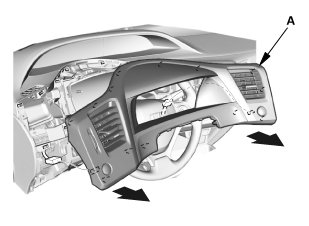

2. Subdisplay Visor





1. Remove the subdisplay visor (A).

2. Disconnect the connector.

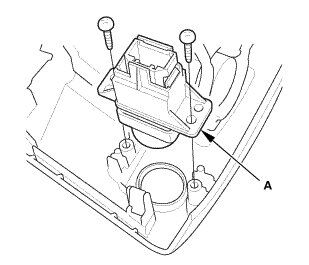

3. ECON Switch





1. Remove the ECON switch (A).

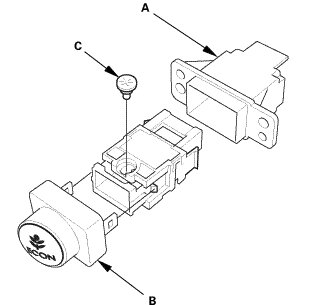

4. ECON Switch Bulb





1. Remove the rear cover (A).

2. Remove the front cover (B).

3. Remove the ECON switch bulb (C).

Installation

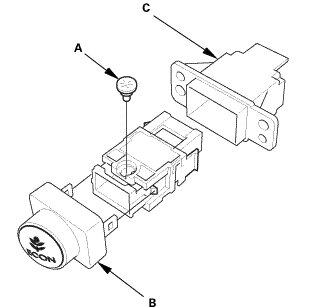

1. ECON Switch Bulb





1. Install the ECON switch bulb (A).

2. Install the front cover (B).

3. Install the rear cover (C).

2. ECON Switch





1. Install the ECON switch (A).

3. Subdisplay Visor





1. Install the subdisplay visor (A).

2. Connect the connector.

4. Driver's Dashboard Lower Cover





1. Connect the connectors.

2. Install the driver's dashboard lower cover (A).
