Engine Mode Switch: Testing and Inspection

Service Information

ECON Switch Test

Removal

1. Driver's Dashboard Lower Cover

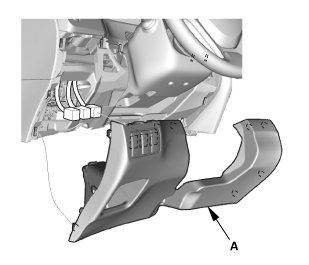

1. Remove the driver's dashboard lower cover (A).

2. Disconnect the connectors.

2. Subdisplay Visor

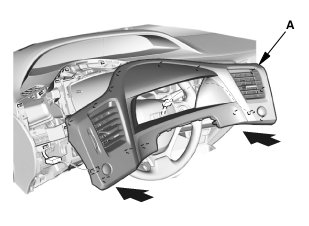

1. Remove the subdisplay visor (A).

2. Disconnect the connector.

Test

1. ECON Switch - Test

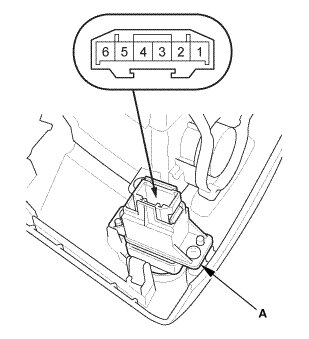

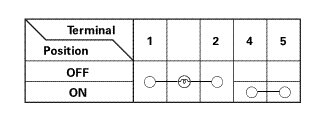

1. Check for continuity between the terminals in each switch position according to the table.

2. If the continuity is not as specified, replace the ECON switch (A).

Installation

1. Subdisplay Visor

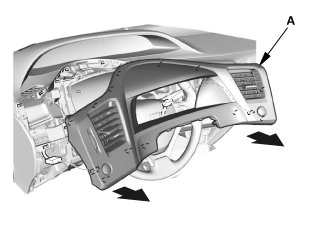

1. Install the subdisplay visor (A).

2. Connect the connector.

2. Driver's Dashboard Lower Cover





1. Connect the connectors.

2. Install the driver's dashboard lower cover (A).
