Manifold Pressure/Vacuum Sensor: Service and Repair

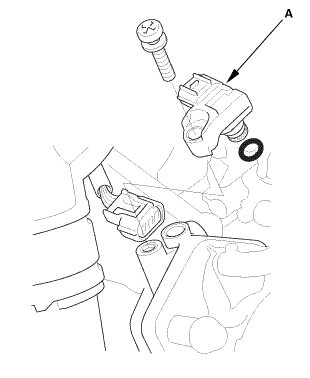

Service InformationMAP Sensor Removal and InstallationRemoval1. MAP Sensor 1.
Disconnect the connector.
2.
Remove the MAP sensor (A).

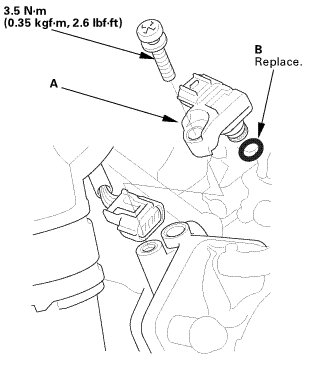

Installation1. MAP Sensor 1.
Install the MAP sensor (A) with a new O-ring (B).
2.
Connect the connector.
