Secondary HO2S Removal And Installation




Service Information

Secondary HO2S Removal and Installation





Removal

1. Vehicle - Lift

1. Raise the vehicle on a lift, and make sure it is securely supported.

2. Engine Under Cover Front as Needed





1. Remove the front engine under cover as needed.

3. Secondary HO2S





1. Disconnect the connector.

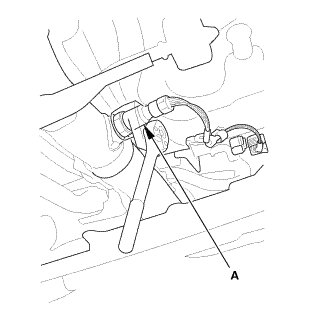

2. Remove secondary HO2S (A).

Installation

1. Secondary HO2S

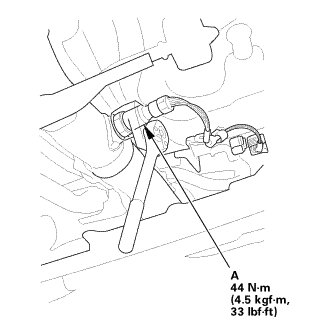

1. Install secondary HO2S (A).

2. Connect the connector.

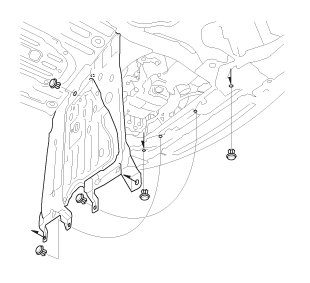

2. Engine Under Cover Front as Needed





1. Install the front engine under cover.
