EGR Valve: Service and Repair

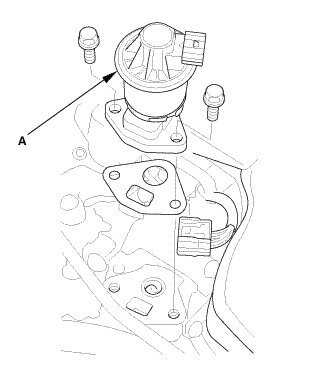

Service InformationEGR Valve Removal and InstallationRemoval1. EGR Valve 1.
Disconnect the connector.
2.
Remove the
EGR valve (A).

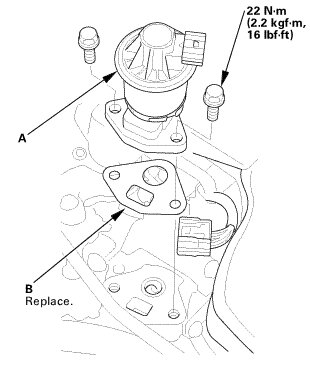

Installation1. EGR Valve 1.
Install the
EGR valve (A) with a new gasket (B).
2.
Connect the connector.
