Spark Plug: Service and Repair




Service Information

Ignition Coil and Spark Plug Removal and Installation

Removal

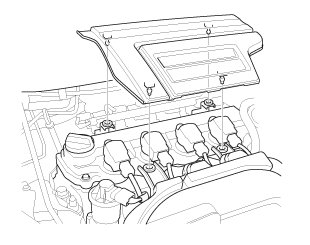

1. Engine Cover





1. Remove the engine cover.

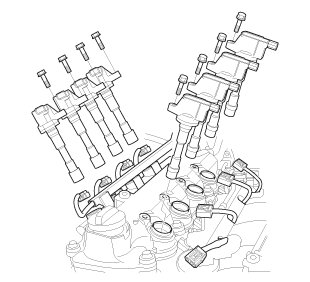

2. Ignition Coil





1. Disconnect the connectors.

2. Remove the ignition coils.

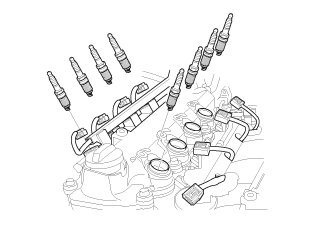

3. Spark Plug





1. Remove the spark plugs.

Installation

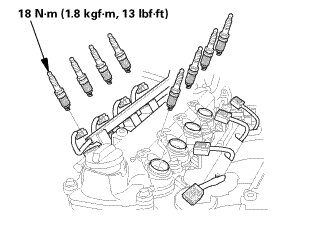

1. Spark Plug





1. Screw the plugs into the cylinder head, finger-tight.

2. Tighten the plugs to the specified torque.

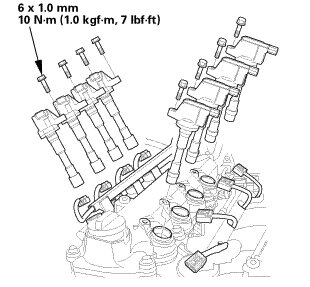

2. Ignition Coil





1. Install the ignition coils.

2. Connect the connectors.

3. Engine Cover





1. Install the engine cover.
