Rear Power Window Switch Removal And Installation

Service Information

Rear Power Window Switch Removal and Installation

Removal

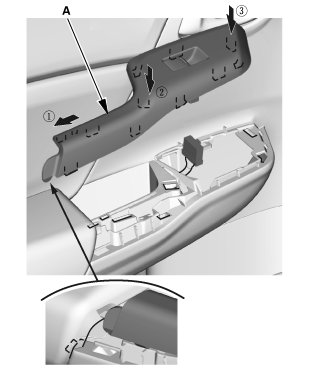

1. Rear Door Power Window Switch Panel

1. Remove the power window switch panel (A).

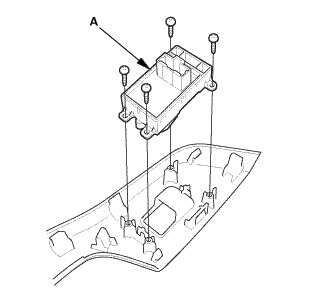

2. Rear Power Window Switch

1. Remove the power window switch (A).

Installation

1. Rear Power Window Switch

1. Install the power window switch (A).

2. Rear Door Power Window Switch Panel

1. Install the power window switch panel (A).
