Power Mirror Replacement




Power Mirror Replacement

NOTE: Take care not to scratch the door.

1. Remove the door panel Rear Door Panel Removal / Installation.

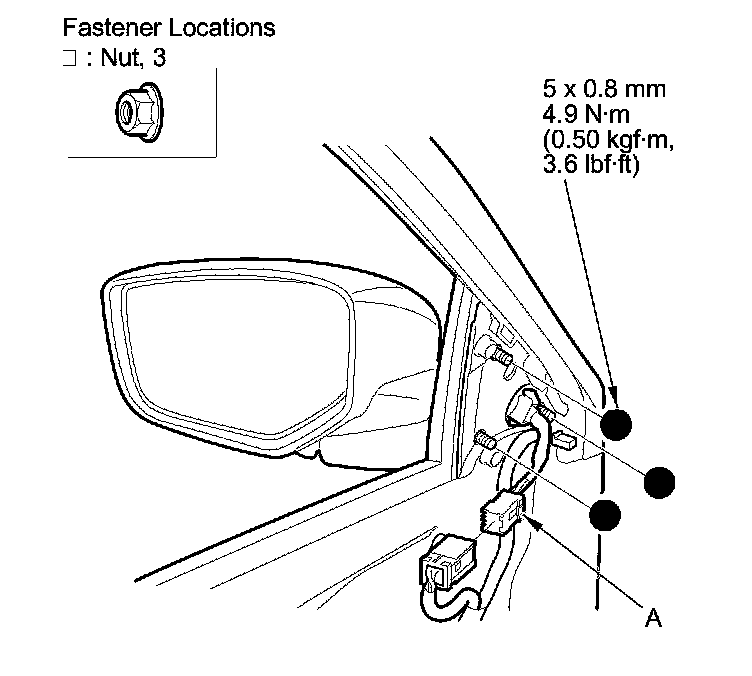

2. Disconnect the power mirror connector (A).





3. While holding the power mirror, remove the nuts securing the mirror.

4. While holding the power mirror (A), squeeze the retaining tabs (B) on the connector clip (C), then push out to remove the power mirror.





5. Install the mirror in the reverse order of removal, and note these items:

- Make sure the connector is plugged in properly.
- Push the connector clip into place securely.
