Lighting and Horns: Service and Repair

Exterior Lights Bulb Replacement

Headlight (High Beam)

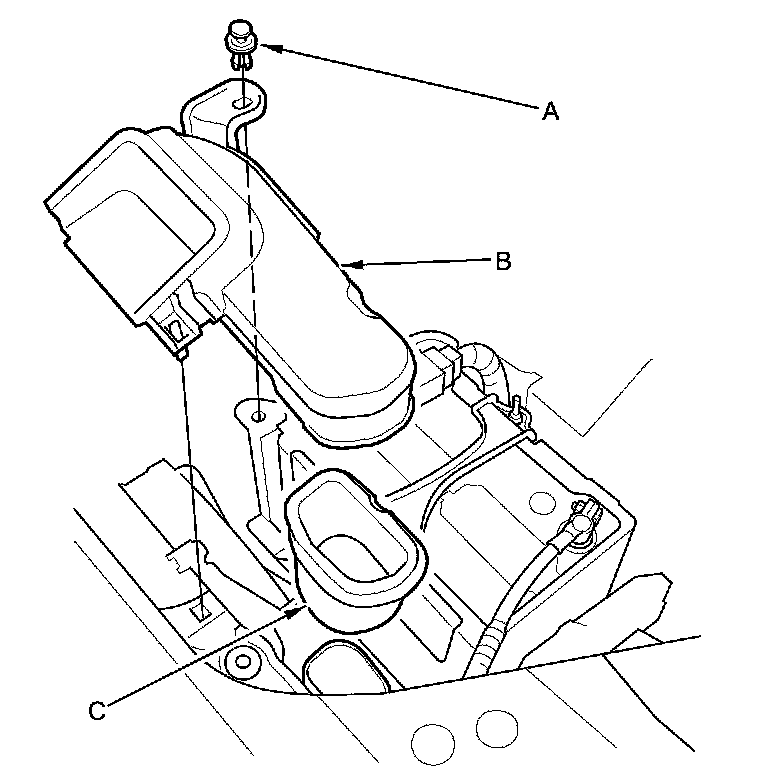

1. To replace a bulb on the left side remove the clip (A), then remove the splash separator (B) and intake air duct (C). To replace a bulb on the right side, remove the engine coolant reservoir tank by pulling it up off its stay.

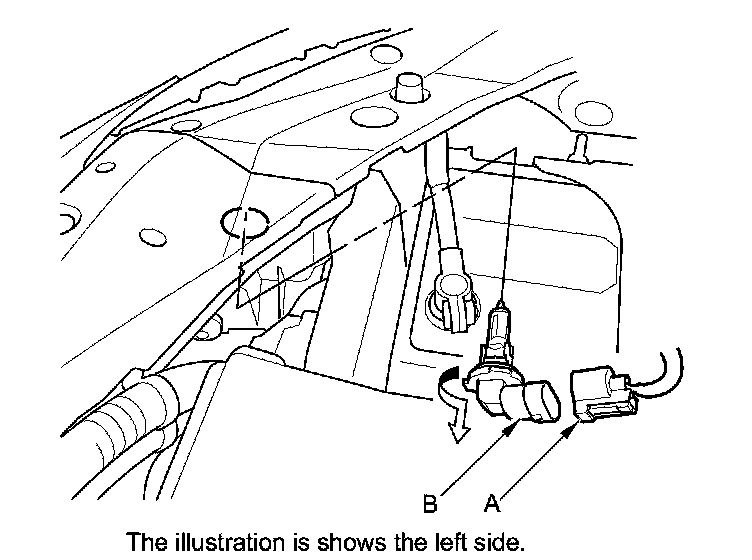

2. Disconnect the 2P connector (A) from the headlight.










3. Turn the bulb socket (B) 45 ° counterclockwise to remove the bulb.

4. Install a new bulb in the reverse order of removal.

Headlight (Low Beam)

1. Remove the front inner fender.

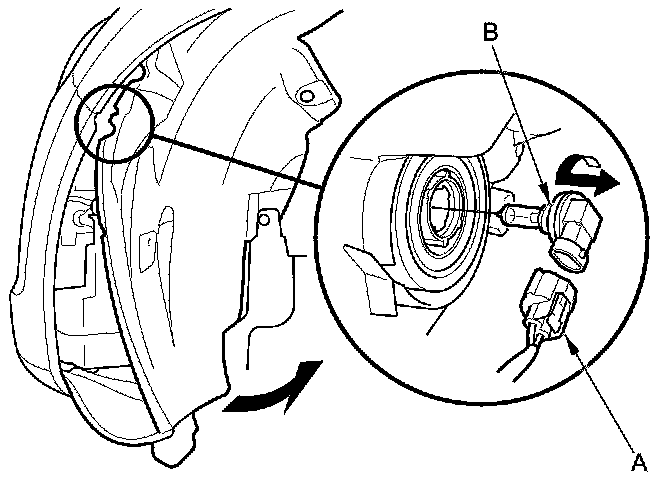

2. Disconnect the 2P connector (A) from the headlight.









3. Turn the bulb socket (B) 45 ° counterclockwise to remove the bulb.

4. Install a new bulb in the reverse order of removal.

Front Turn Signal/Parking Lights

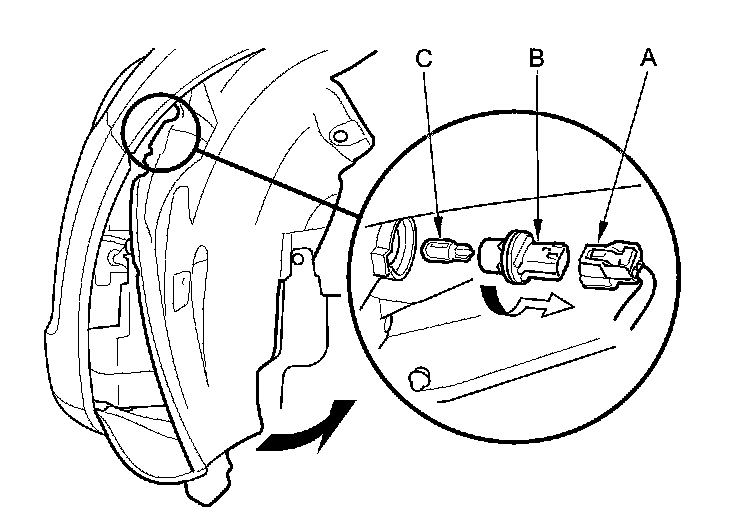

1. Disconnect the 3P connector (A) from the front turn signal/parking lights.









2. Turn the bulb socket (B) 45 ° counterclockwise to remove the bulb (C).

3. Install a new bulb in the reverse order of removal.

Front Side Marker Light

1. Remove the front inner fender.

2. Disconnect the 2P connector (A) from the front side marker light.









3. Turn the bulb socket (B) 45 ° counterclockwise to remove the bulb (C).

4. Install a new bulb in the reverse order of removal.
