Cargo Area Light Test/Replacement

Cargo Area Light Test/Replacement

1. Open the tailgate.

2. Turn the cargo area light switch OFF.

3. Carefully pry out the cargo area light (A).









4. Disconnect the 2P connector (B) from the cargo area light.

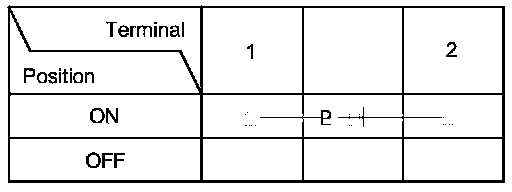

5. Check for continuity between the terminals in each switch position according to the table.

NOTE:

- Make sure the correct test lead (+ or -) is placed on the terminal.
- When checking for continuity across the diode, use the diode setting () on the digital volt/ohm meter to check the diode bias.
- Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).





6. If the continuity is not as specified, check the bulb (C). If the bulb is OK, replace the cargo area light.

7. Install the light in the reverse order of removal.
