Multiplex Integrated Control System DTC Troubleshooting Index




Multiplex Integrated Control System DTC Troubleshooting Index

NOTE: Record all DTCs, all sort them by DTC type using the following DTC troubleshooting indexes, then troubleshoot the DTC(s) in this order:

- Battery voltage DTCs
- Internal error DTCs
- Loss of communication DTCs (beginning with the lowest number first; for example, if B1011 and B1036 are retrieved, troubleshoot B1011 first).
- Signal error DTCs

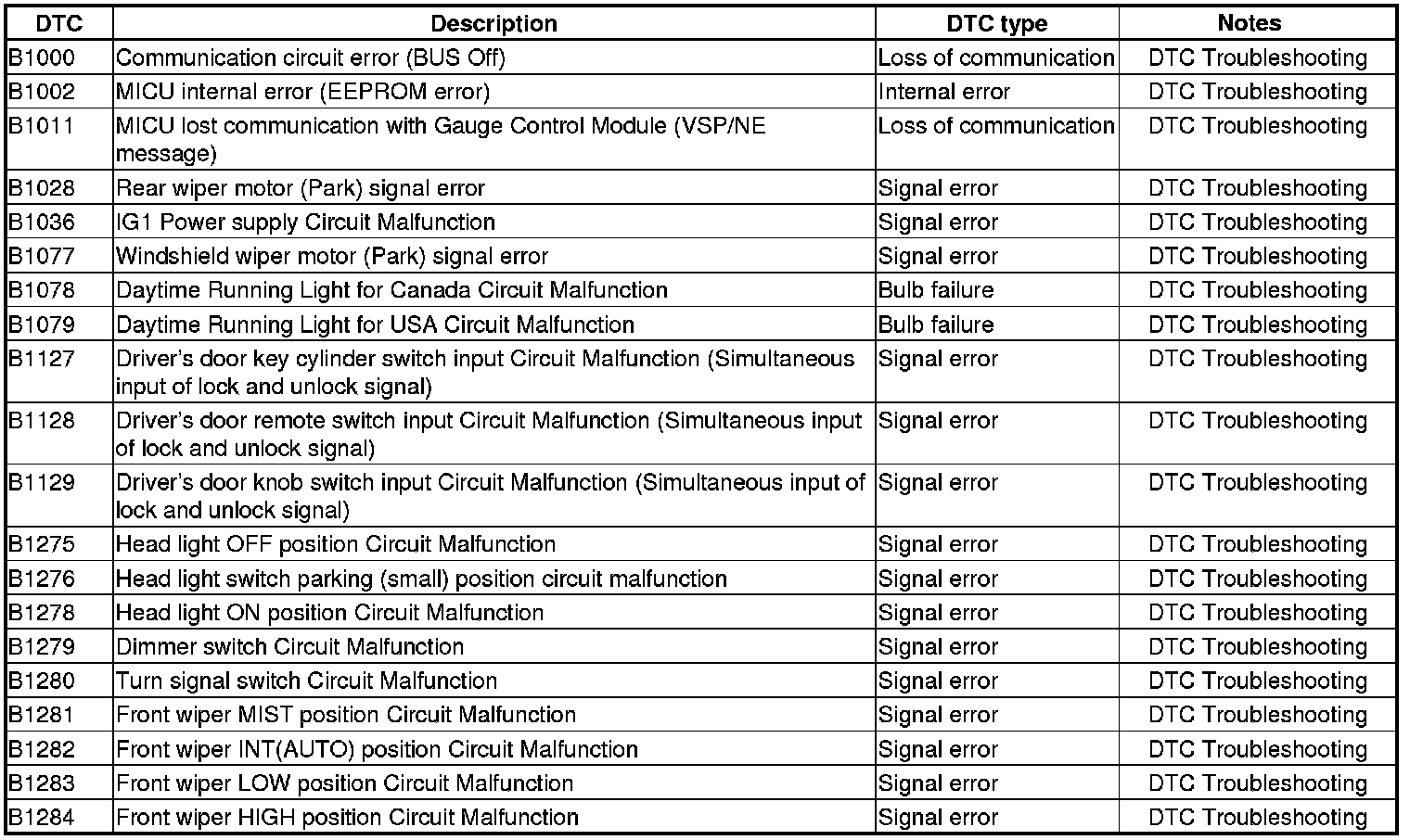

MICU

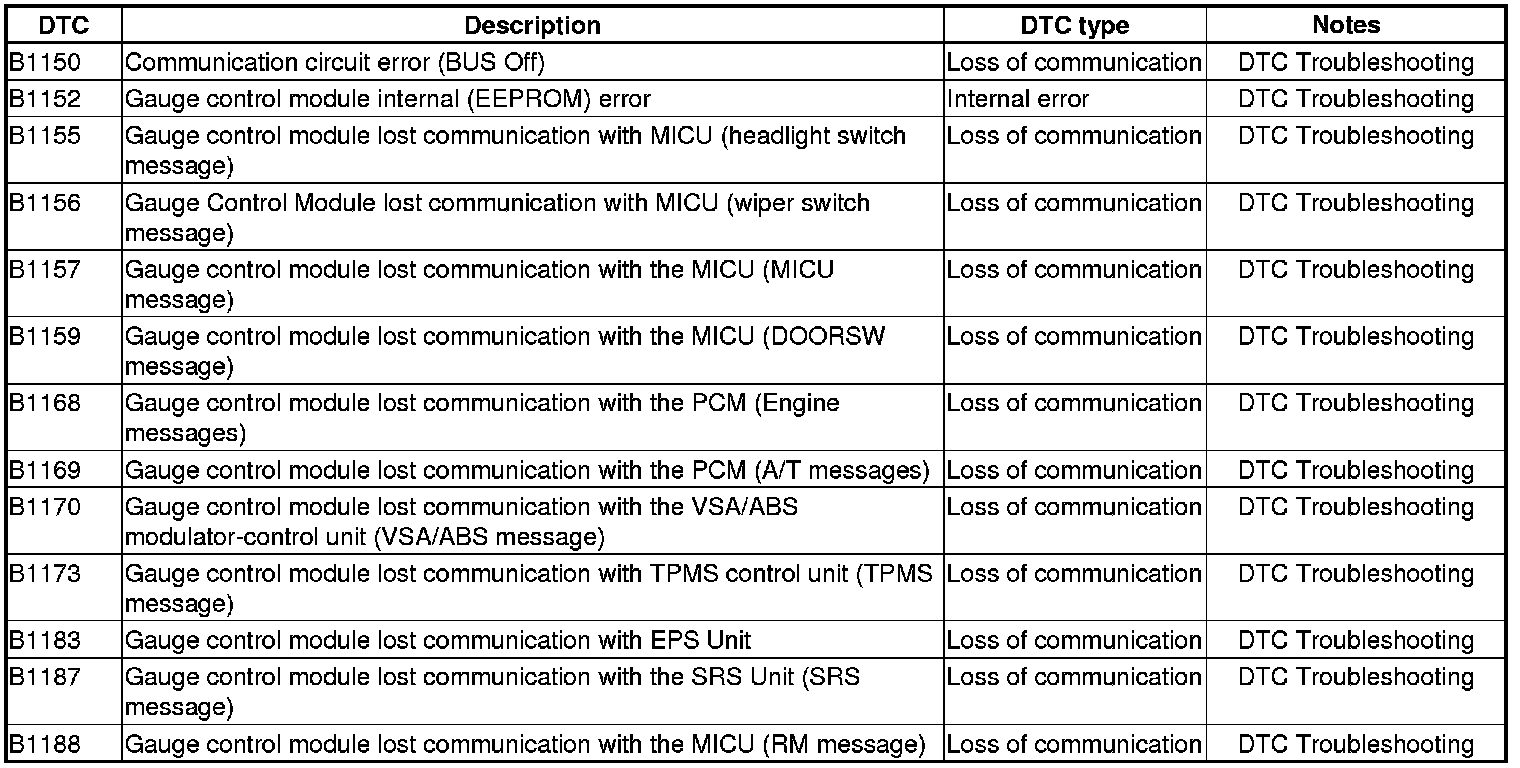

Gauge Control Module





Immobilizer-Keyless Control Unit





HandsFreeLink Control Unit ('12 model without navigation)
