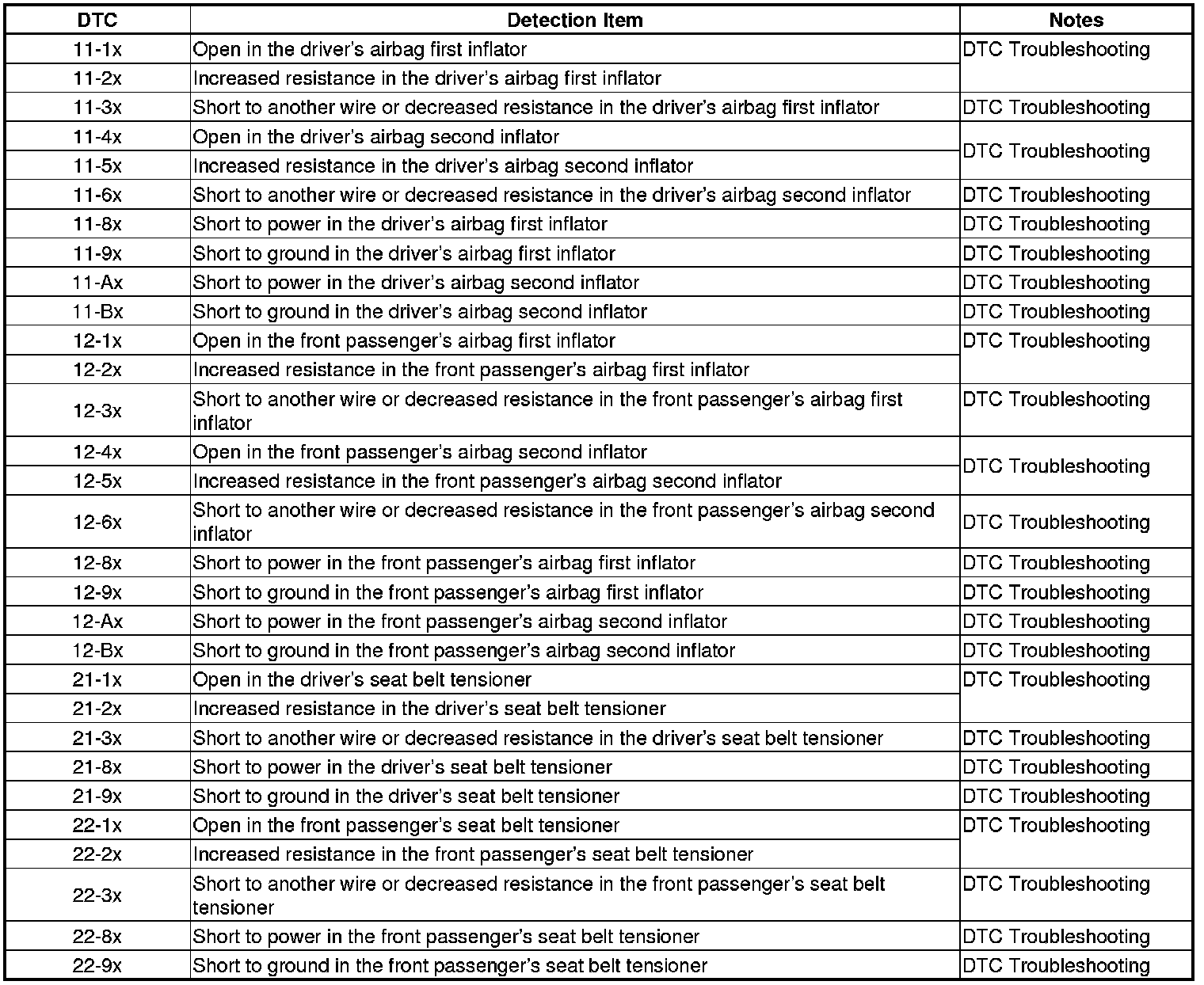

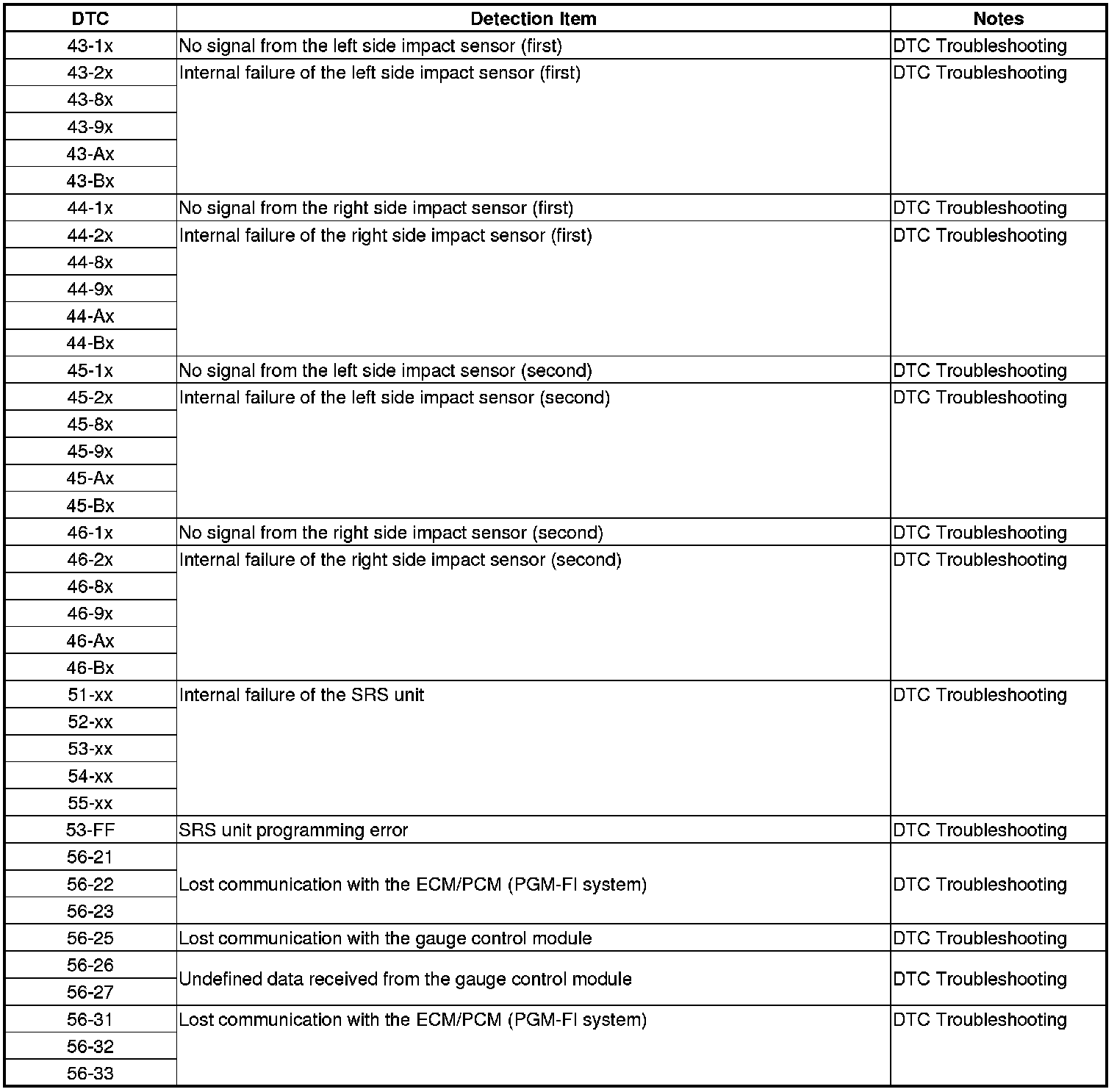

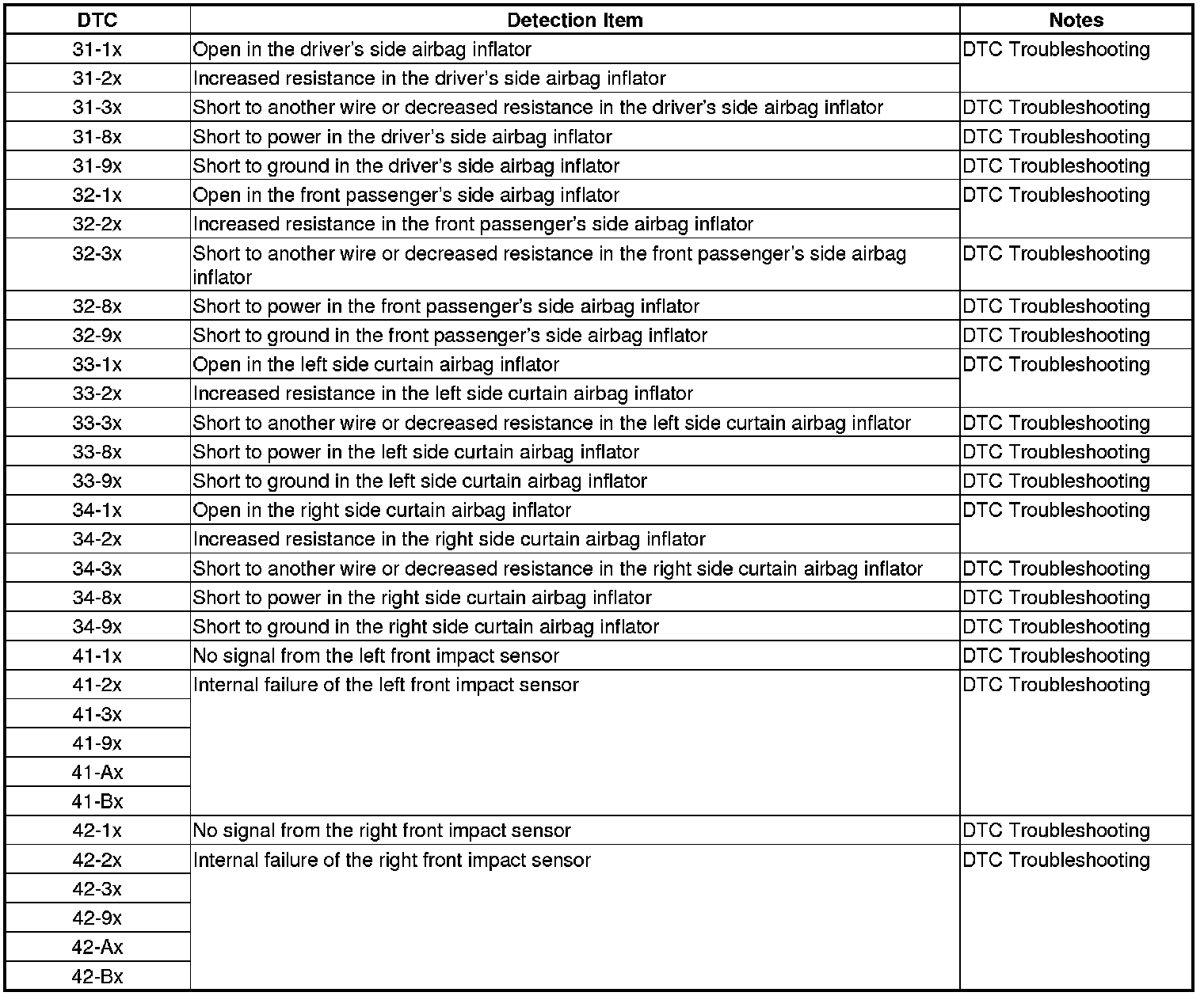

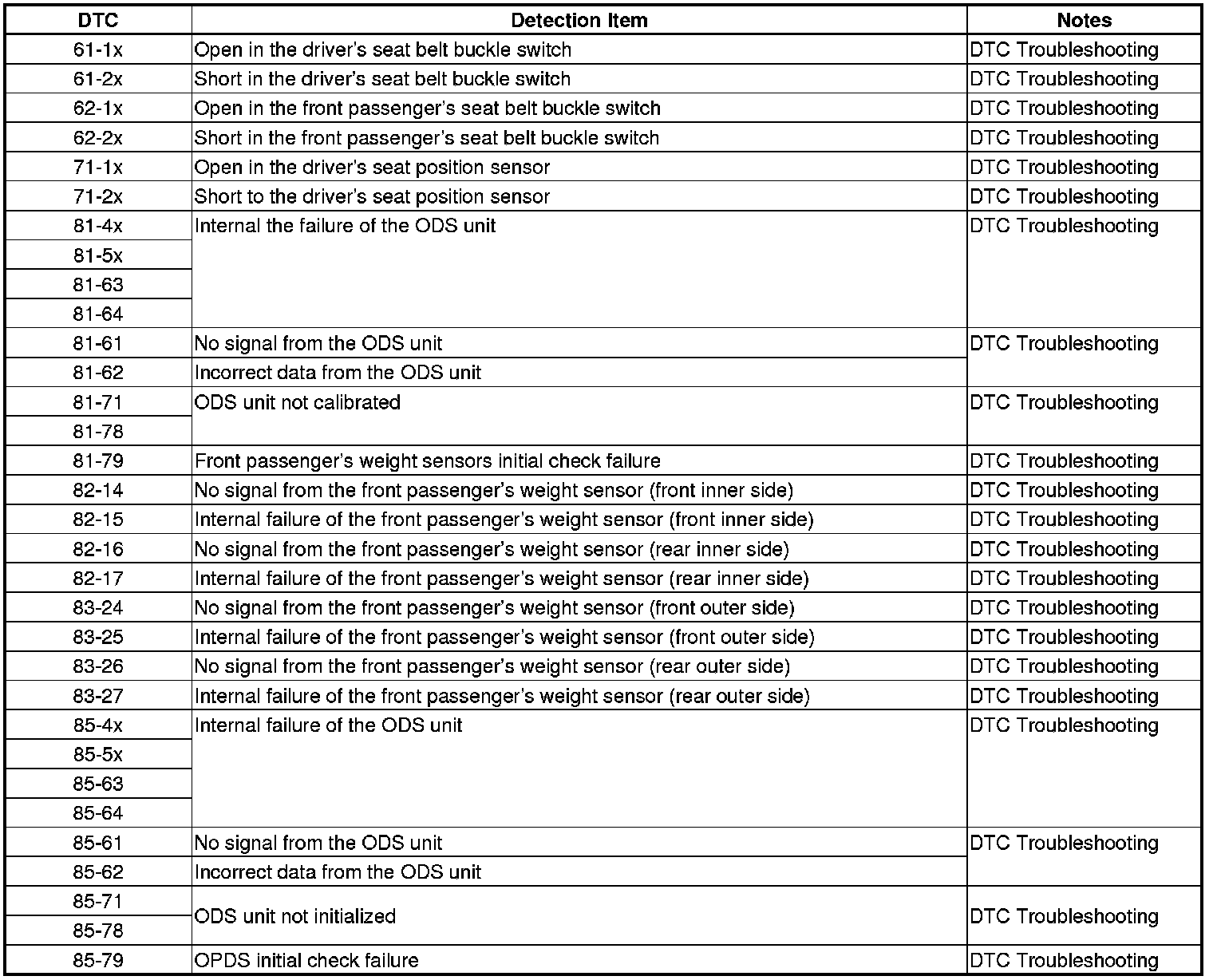

SRS DTC Troubleshooting Index
SRS DTC Troubleshooting IndexOnly read DTCs from the SRS menu, not from SWS menus unless instructed to check SWS DTCs. SWS (ODS unit) DTCs are subcodes of SRS unit DTCs. Only troubleshoot the corresponding SRS DTCs. Also these SWS DTCs are cleared by turning the ignition switch to LOCK (0).

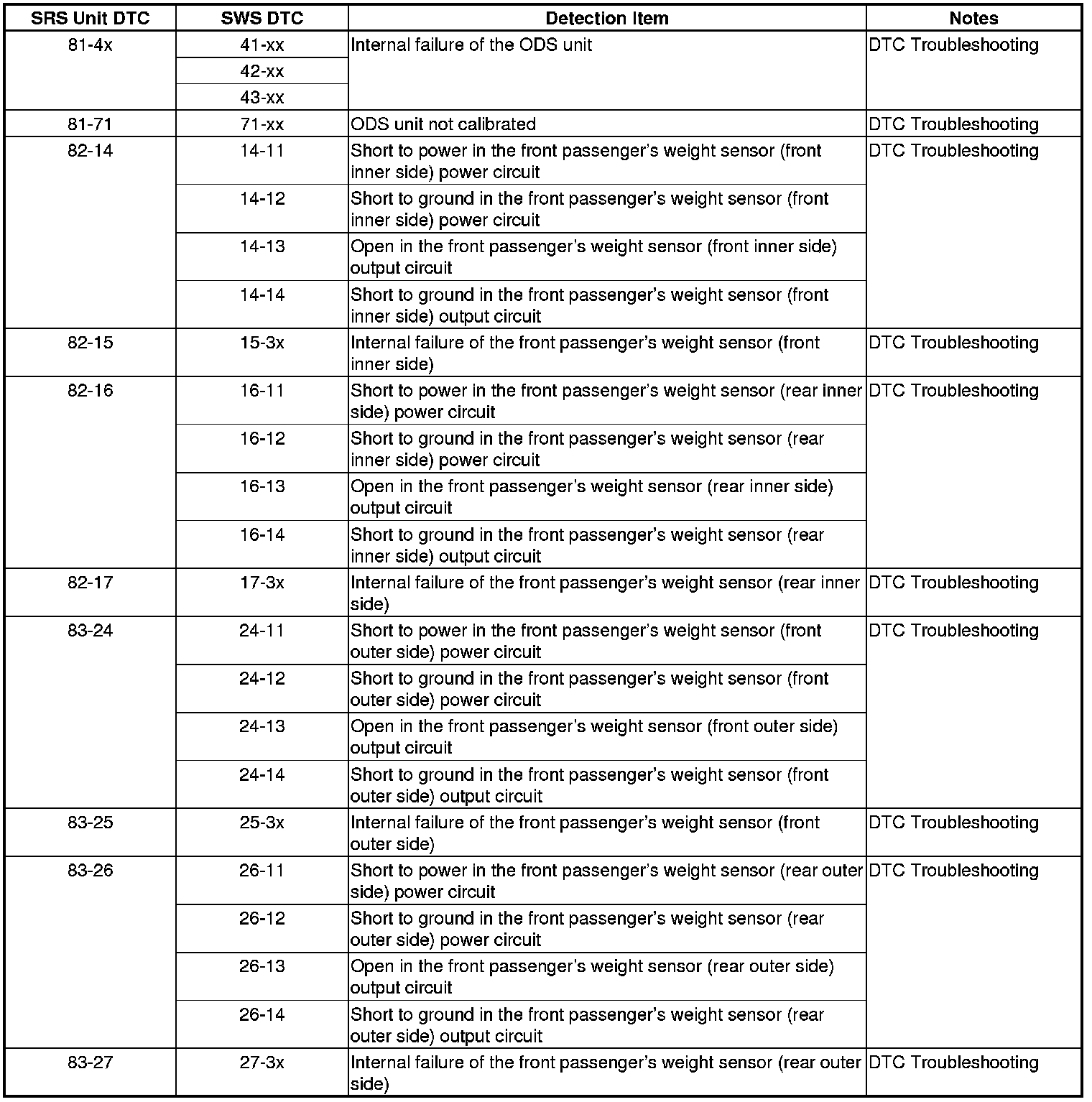

SWS DTC Index
