Alarm Horn: Service and Repair
Security Horn Test/ReplacementWith security 1.
Remove the front bumper
Front Bumper Removal/Installation.
2.

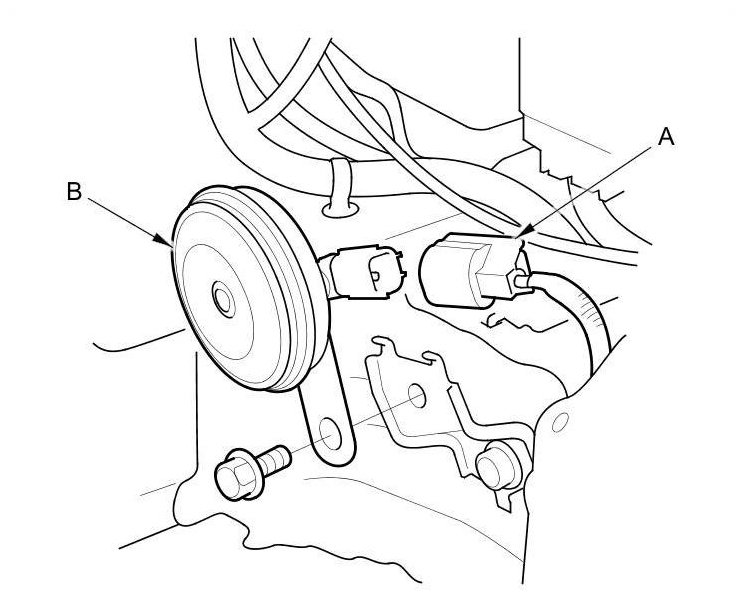

Disconnect the 1P connector (A) from horn (B).
3.

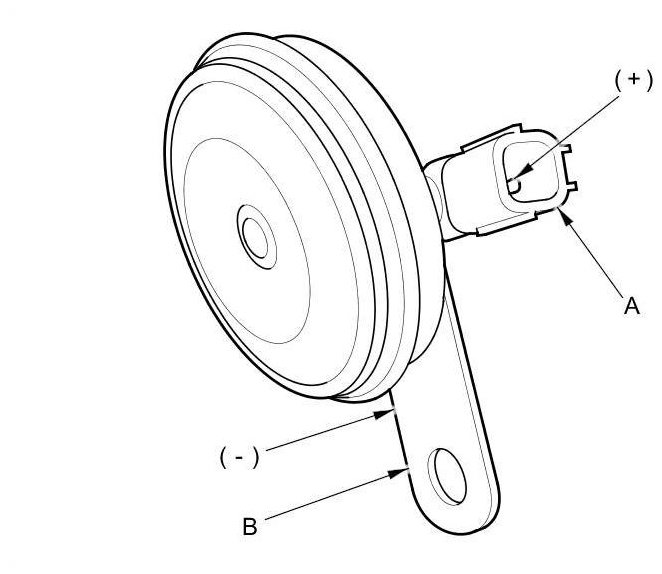

Test the horn by connecting battery power to the terminal (A) and grounding the bracket (B). The horn should sound.
4.
If it fails to sound, replace it.
