USB Adapter Unit Replacement
USB Adapter Unit ReplacementWithout navigation (with USB adapter unit) 1.
Remove the audio unit
Audio Unit Removal/Installation.
2.
Disconnect the connector from the USB adapter unit.
3.

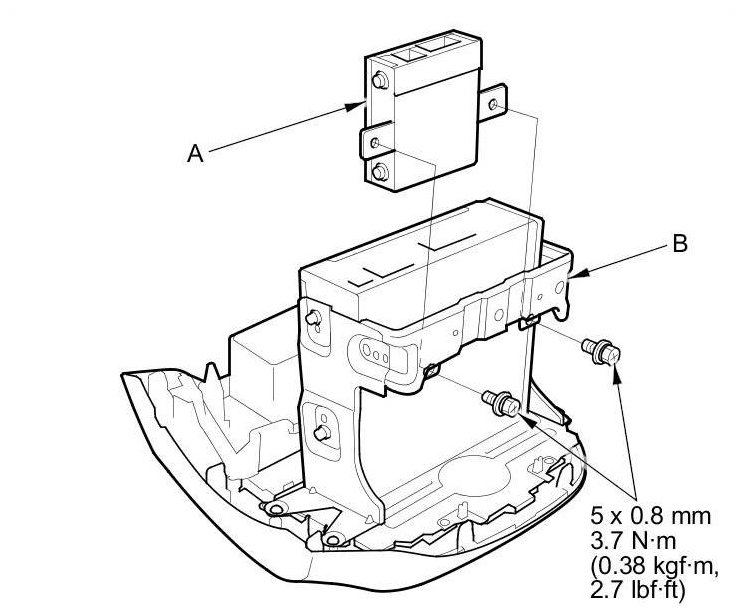

Remove the bolts and the USB adapter unit (A) from the bracket (B).
4.
Install the USB adapter unit in the reverse order of removal.
