HFL Switch Replacement

HFL Switch Replacement

SRS components are located in this area. Review the SRS component location Locations, and the precautions and procedures Service and Repair in the SRS section before doing repairs or service.

1. Remove the steering wheel Steering Wheel Removal.

2. Remove the audio remote switch Service and Repair.

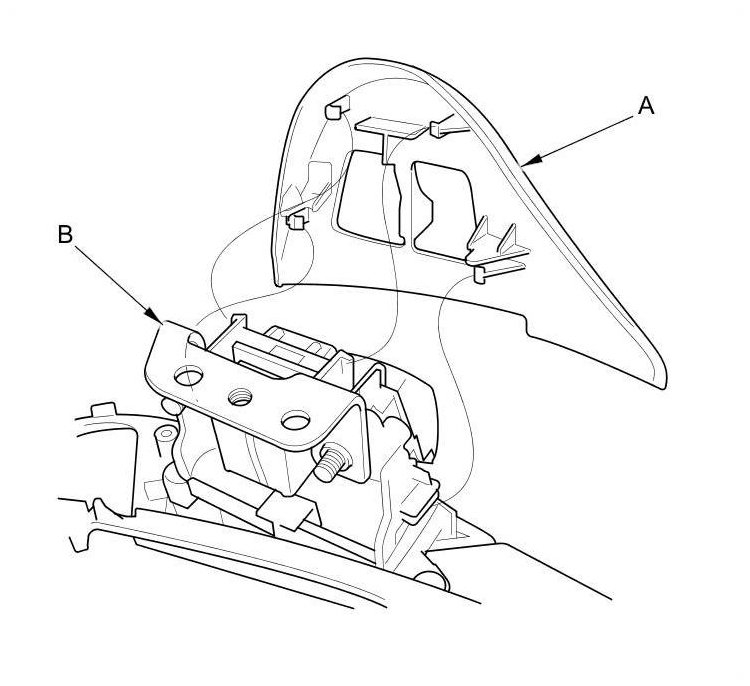

3. Remove the switch cover (A) from the voice control switch (B).

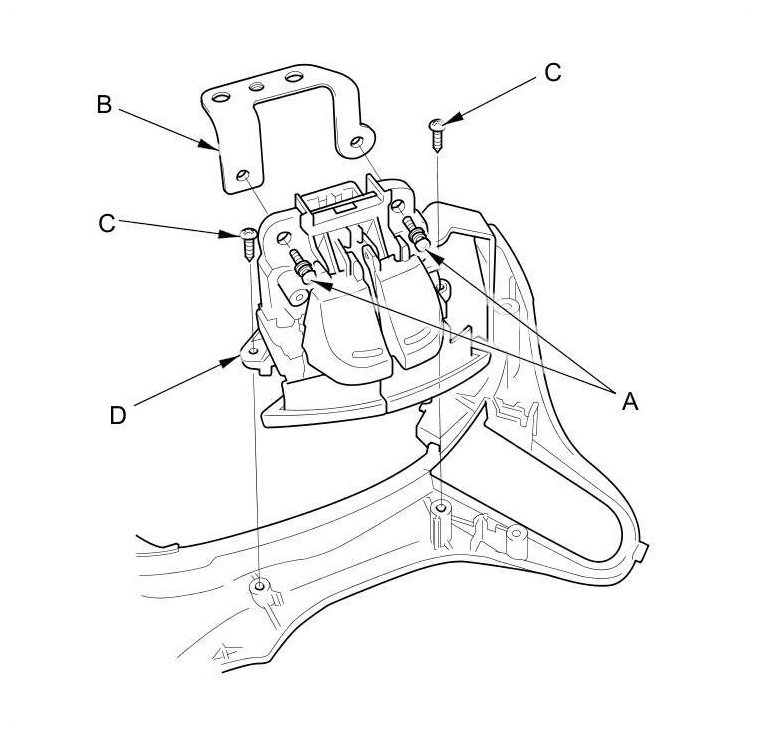

4. Remove the screws (A), and remove the set plate (B).






5. Remove the screws (C), and remove the voice control switch (D).

6. Install the voice control switch in the reverse order of removal.
