Front Air Spoiler Replacement

Front Air Spoiler Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the front bumper.

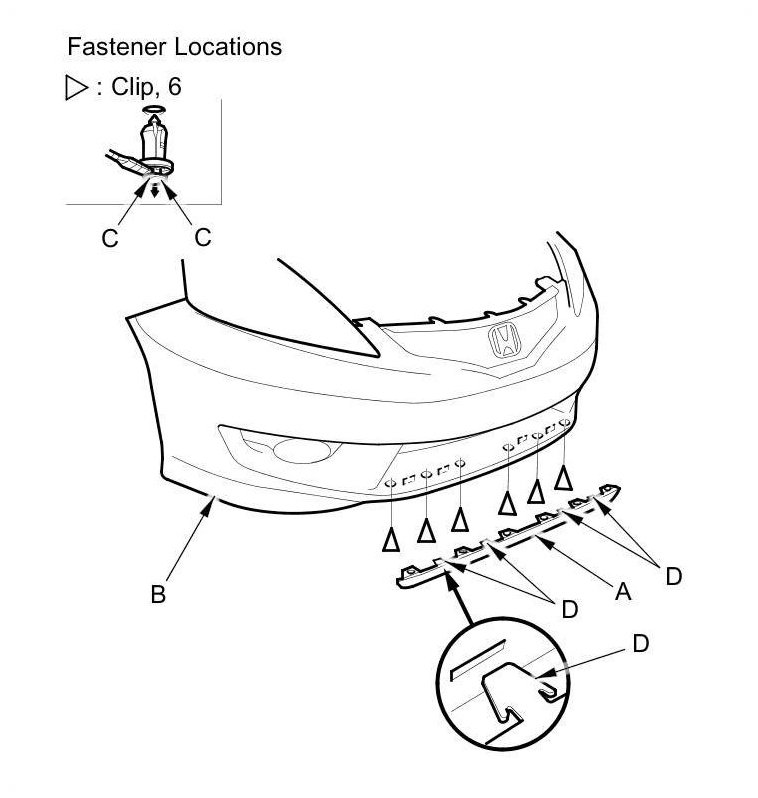

1. Remove the clips securing the air spoiler (A) to the front bumper (B).

NOTE: To release the clips, pry up on the center pin at the notch (C).





2. Pull the front air spoiler back to detach the hooks (D), and remove the spoiler.

3. Install the spoiler in the reverse order of removal:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
