Tailgate Latch Switch Test

Tailgate Latch Switch Test

1. Open the tailgate.

2. Remove the tailgate lower trim panel .

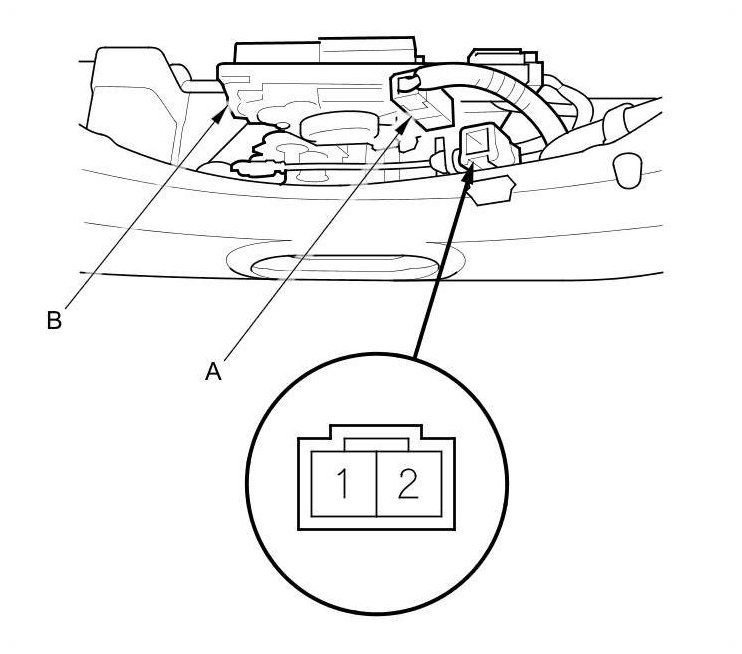

3. Disconnect the 2P connector (A) from the tailgate latch assembly (B).

4. Check for continuity between terminals No. 1 and No. 2.

- There should be continuity with the tailgate open.
- There should be no continuity with the tailgate closed.

5. If the continuity is not as specified, replace the tailgate latch assembly Service and Repair.
