Tailgate Dynamic Damper Replacement
Tailgate Dynamic Damper ReplacementNOTE:
-
Put on gloves to protect your hands.
-
Take care not to scratch the tailgate or the related parts.
1.
Remove the tailgate lower
trim panel .
2.

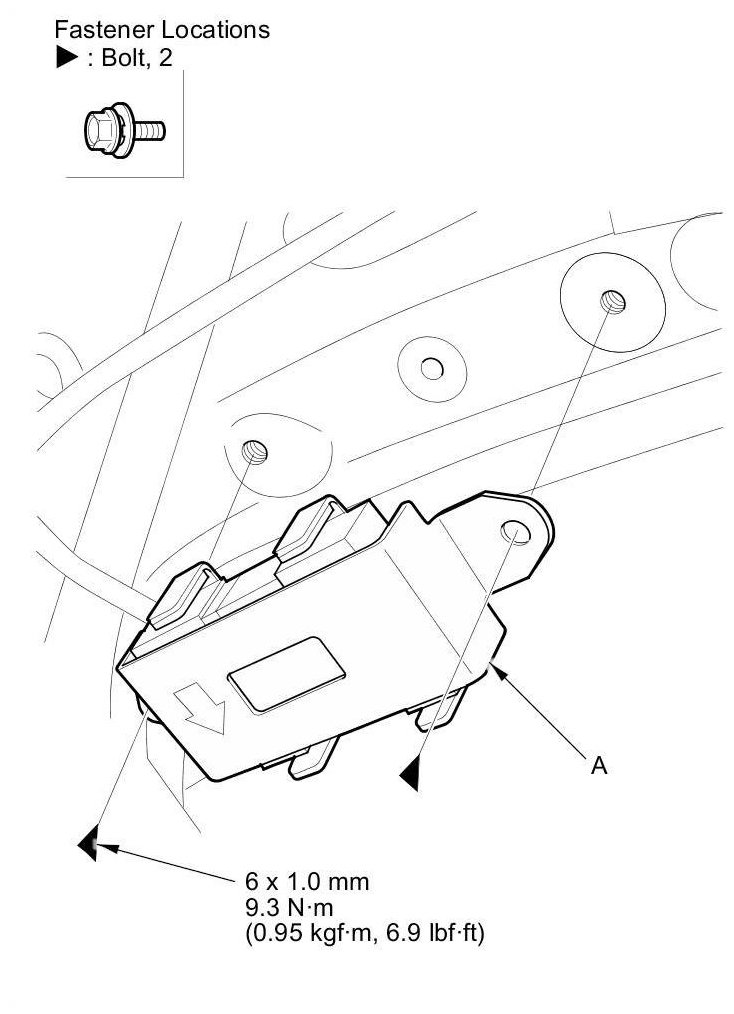

Remove the bolts, then remove the tailgate dynamic damper (A) from the tailgate.
3.
Install the tailgate dynamic damper in the reverse order of removal.
