Lower Front Bumper Grille Cover Replacement

Lower Front Bumper Grille Cover Replacement

Canada Models Without Front Fog Lights

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the front bumper.

1. Remove the front bumper Front Bumper Removal/Installation.

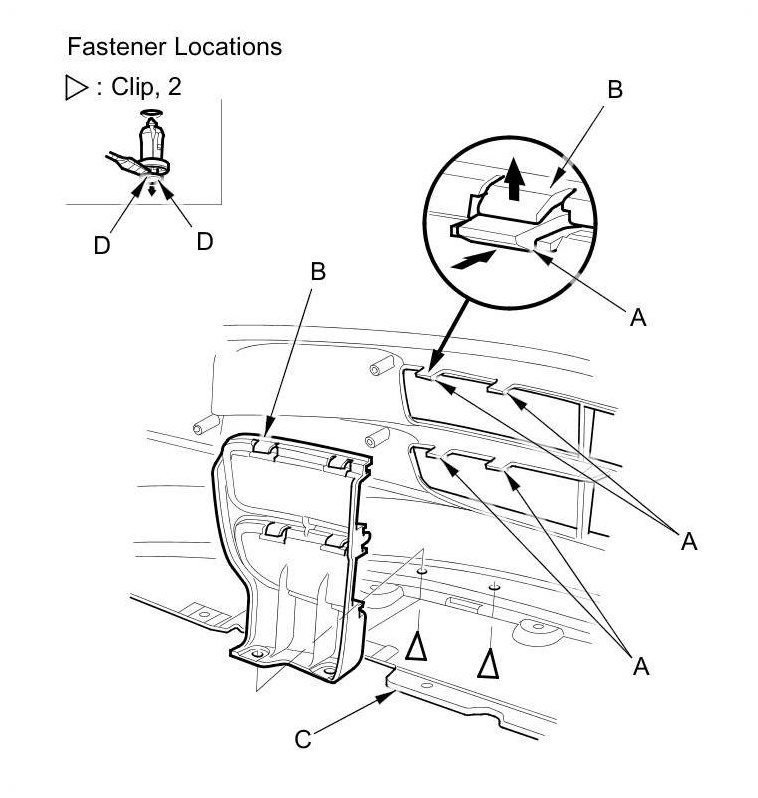

2. Remove the clips and the hooks (A), then remove the lower front bumper grille cover (B) from the front bumper (C).

NOTE: To release the clips, pry up on the center pin at the notch (D).





3. Install the cover in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, and replace them with new ones.
- Push the clips and the hooks into place securely.
