Interior Moulding / Trim: Service and Repair
Dashboard Passenger's Tray Lid Removal/InstallationNOTE: Take care not to scratch the dashboard or its related parts.
1.
Open the lid.
2.

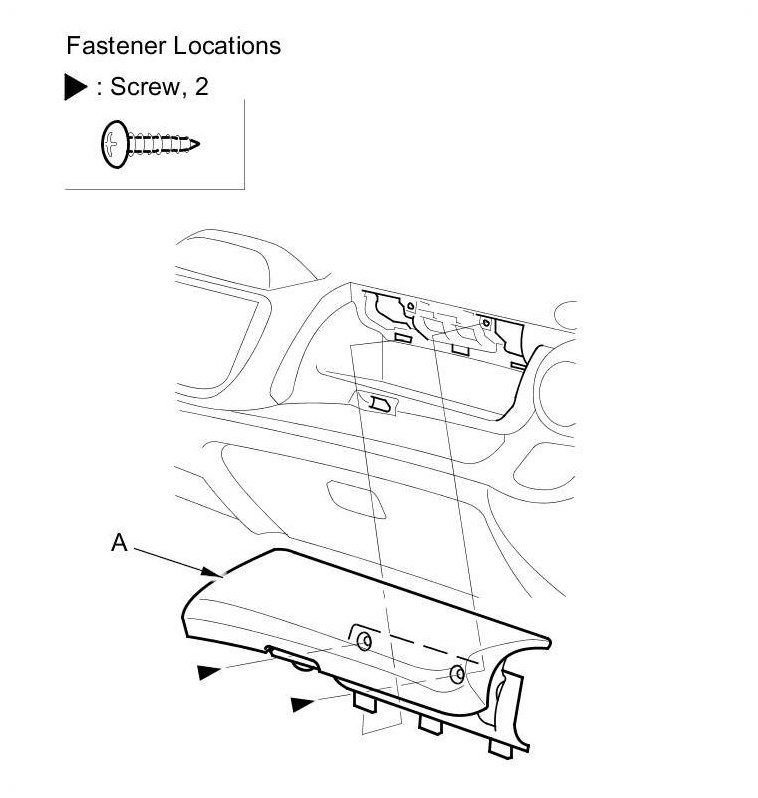

Remove the screws, then remove the passenger's upper tray lid (A).
3.
Install the lid in the reverse order of removal.
