Rear Door Window Glass Weatherstrip: Service and Repair

Rear Door Glass Outer Weatherstrip Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the door or related parts.

1. Remove the rear door rear sash trim .

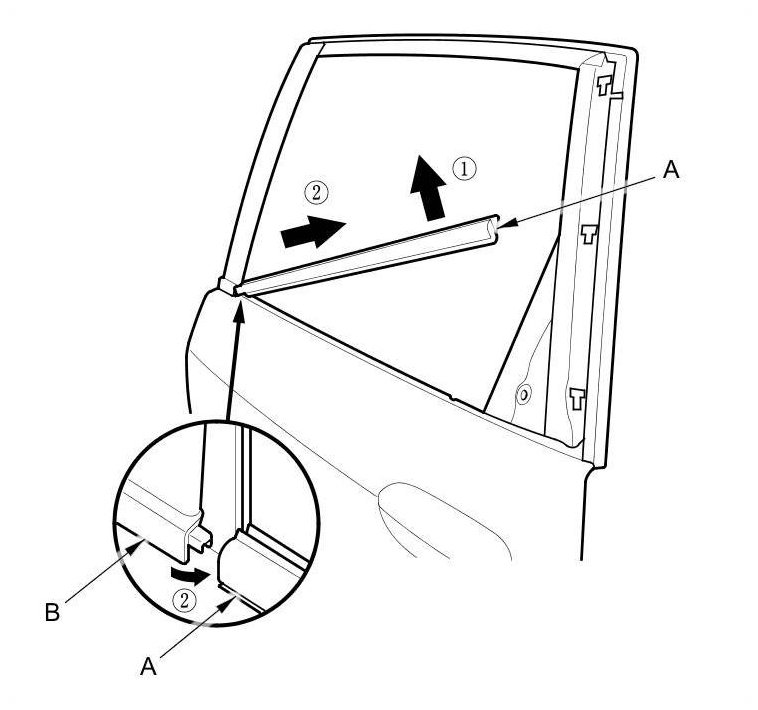

2. While lifting the rear of the door glass outer weatherstrip (A), slide the weatherstrip rearward to release the front edge of the weatherstrip from the door sash outer trim (B), then remove the weatherstrip.





3. Install the weatherstrip in the reverse order of removal, and note these items:

- Push the weatherstrip into place securely.
- Make sure that there is no clearance between the front edge of the weatherstrip and the door sash outer trim.
