HFT-Navigation Microphone Removal/Installation (With Navigation)

HFT-Navigation Microphone Removal/Installation

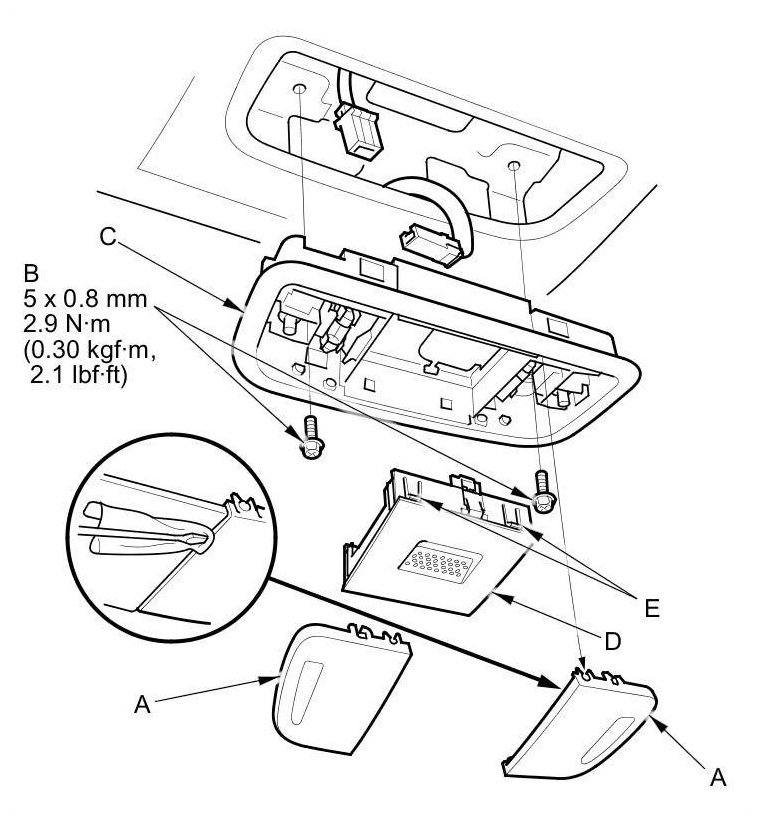

1. Remove the front individual map light lens (A) using a flat-tip screwdriver.

2. Remove the bolts (B), then disconnect the connectors, and remove the map light housing (C).

3. Carefully pry off the microphone housing (D) from the map light housing while pressing the retaining tabs (E).

4. Install the microphone in the reverse order removal.
