Rocker Arm Assembly Removal
Rocker Arm Assembly Removal 1.
Remove the cylinder head cover
Cylinder Head Cover Removal.
2.

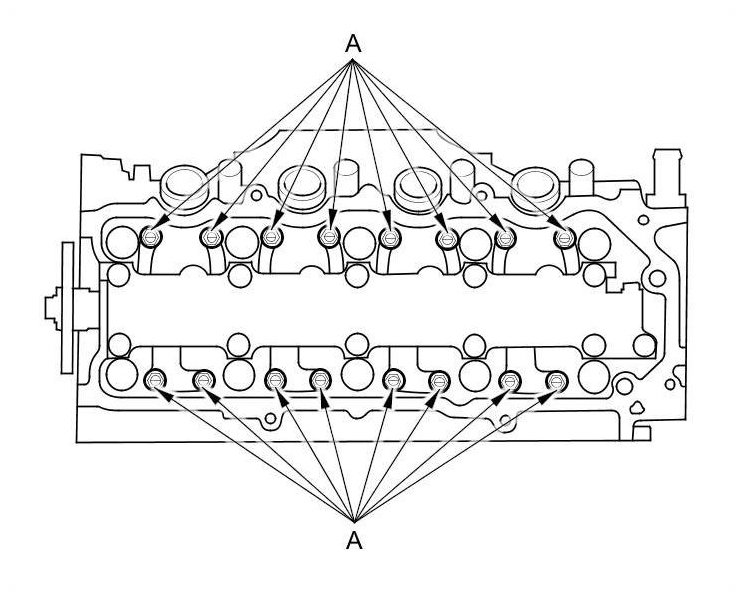

Loosen the rocker arm adjusting screws (A).
3.

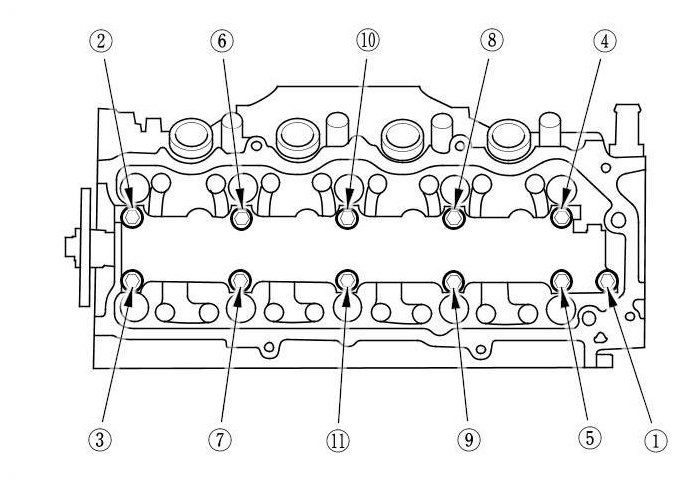

Unscrew the rocker shaft mounting bolts two turns at a time in the sequence shown.
4.

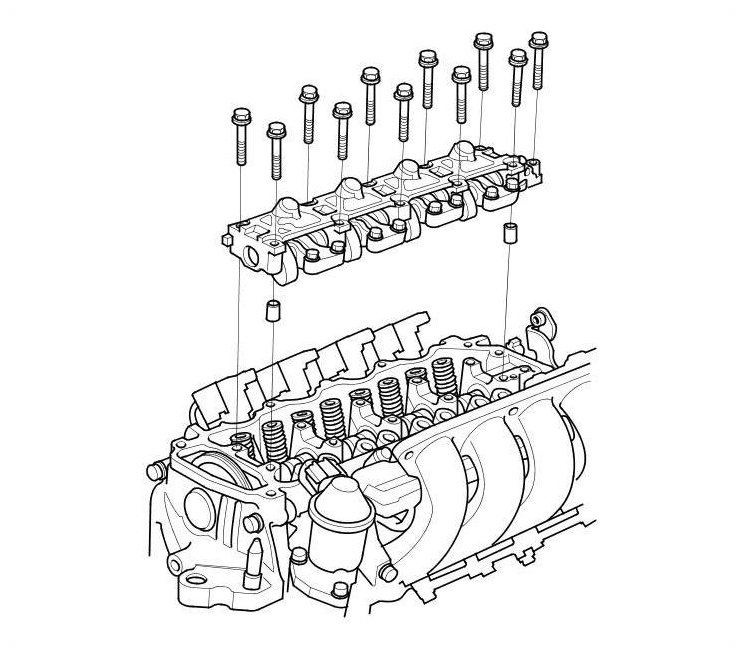

Remove the rocker shaft mounting bolts, then remove the
rocker arm assembly.
