Torque & Sequence
Cylinder Head Torque

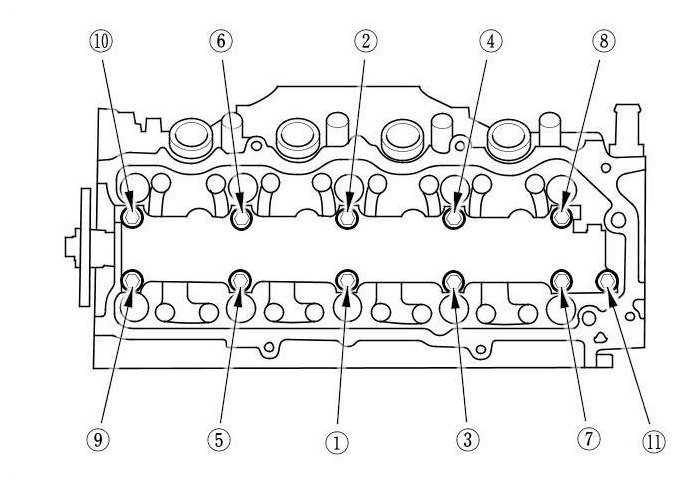

Torque the cylinder head bolts in sequence to
29 Nm (3.0 kg-m, 22 lb-ft)

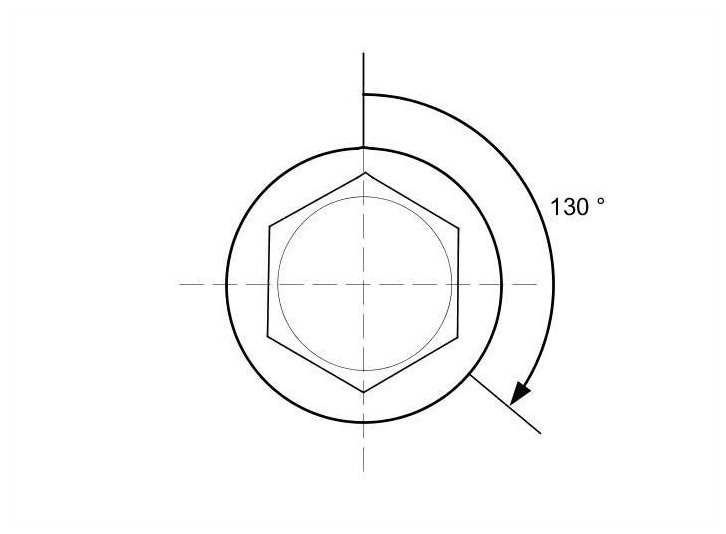

Tighten all cylinder head bolts an additional 130 °.

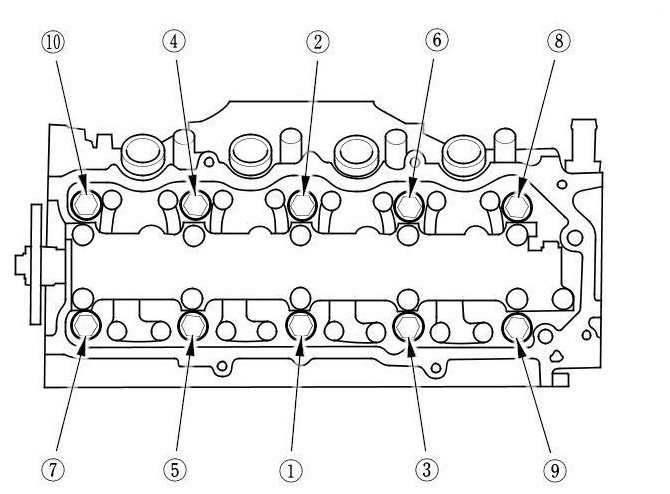

Rocker Arm Retainer Torque
Tighten each bolts two turns at a time in the sequence.
