Oil Pressure Sender: Testing and Inspection

Engine Oil Pressure Switch Test

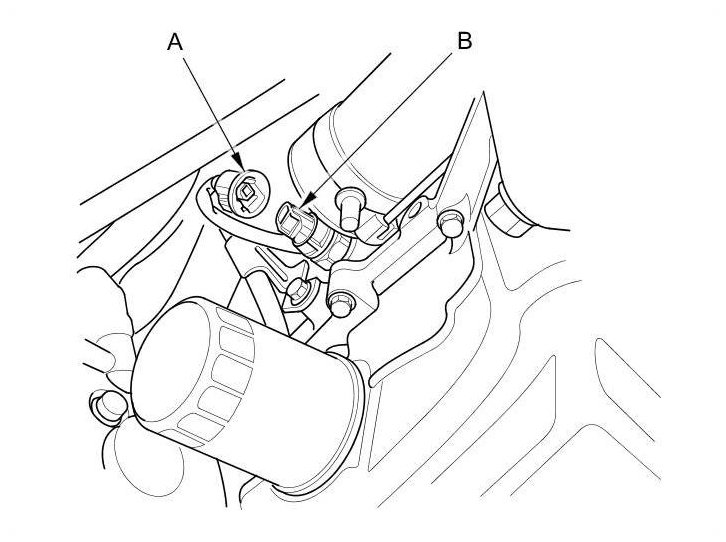

1. Disconnect the oil pressure switch connector (A) from the engine oil pressure switch (B).

2. Check for continuity between the oil pressure switch terminal and the engine (ground). There should be continuity with the engine stopped. There should be no continuity with the engine running.

3. Connect the oil pressure switch connector to the oil pressure switch.
