Heater Control Panel Removal/Installation




Heater Control Panel Removal/Installation

1. Remove the center panel.

2. Remove the control cables from the blower/heater unit Adjustments.

3. Pull the right portion out of the instrument panel Instrument Panel Removal/Installation.

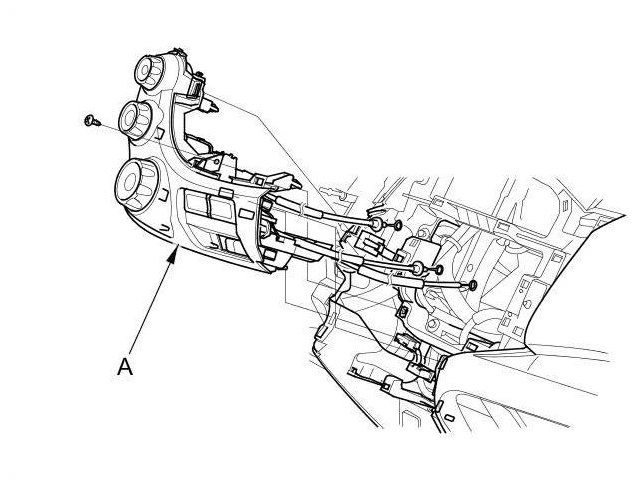

4. Remove the screw, and pull the heater control panel (A) out to access the electrical connectors.





5. Disconnect the connectors, and remove the heater control panel along with the control cables.

6. Install the control panel in the reverse order of removal. After installation, operate the controls to make sure they work properly.
