Wheels: Testing and Inspection

Wheel Runout Inspection

1. Raise and support the vehicle Service and Repair.

2. Check for a bent or deformed wheel.

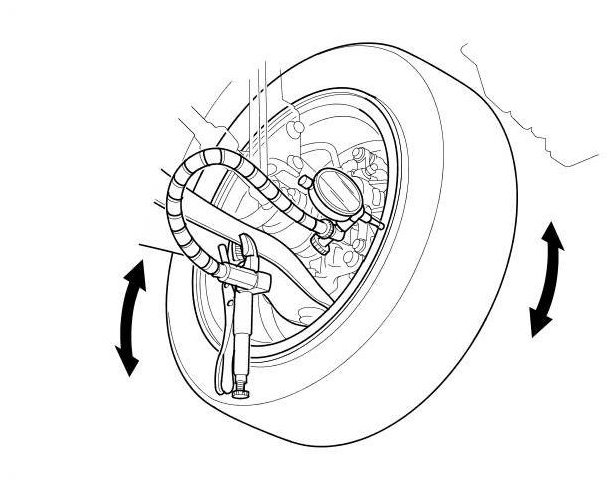

3. Set up the dial gauge as shown, and measure the axial runout by turning the wheel.

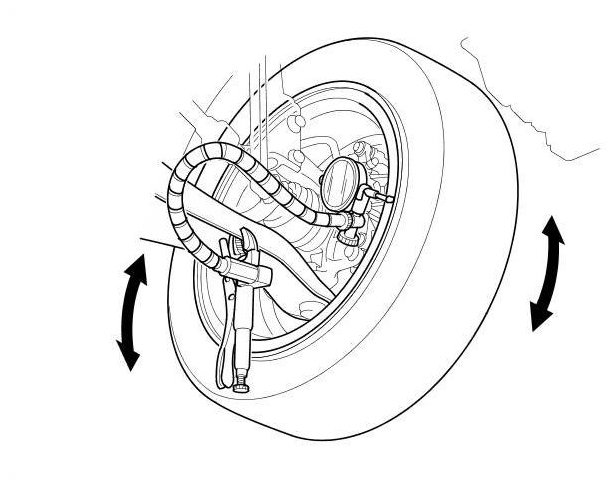

4. Reset the dial gauge to the position shown, and measure the radial runout.









5. If the wheel runout is not within the specification, check the wheel bearing end play Testing and Inspection, and make sure the mating surfaces on the brake disc and the inside of the wheel are clean.

6. If the bearing end play is within the specification Testing and Inspection , but the wheel runout is more than the service limit, replace the wheel.
