Seat Position Sensor: Service and Repair




Driver's Seat Position Sensor Replacement

Removal

NOTE: Do not turn the ignition switch to ON (II), and do not connect the battery cable while removing the driver's seat position sensor.

1. Do the battery terminal disconnection procedure, then wait at least 3 minutes before starting work.

2. Remove the recline cover Front Seat Recline Cover Removal/Installation.

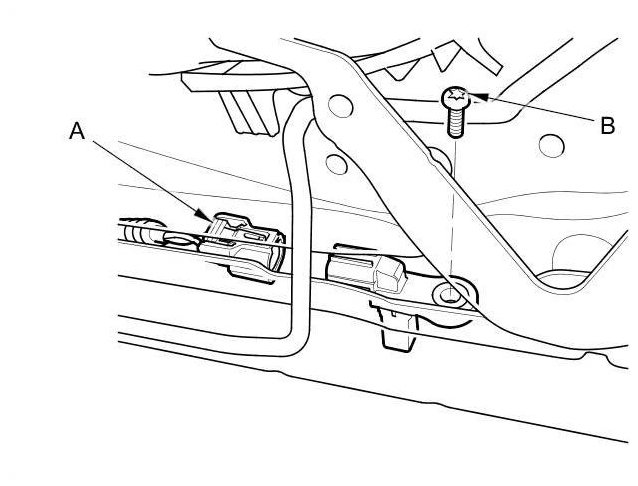

3. Disconnect the driver's seat position sensor 2P connector (A) on the driver's seat position sensor harness. Remove the TORX bolt (B) using a TORX T30 bit.

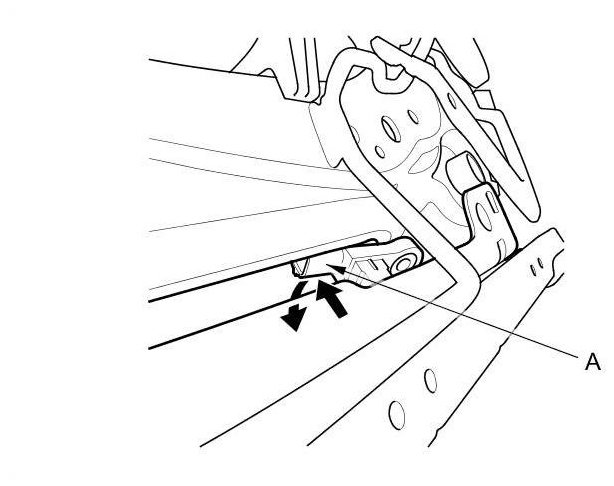

4. Remove the driver's seat position sensor (A) through the space between the seat track and slide as shown.






Installation

NOTE:

- Be sure to install the harness so it does not pinched or interfere with other parts.
- Do not turn the ignition switch to ON (II), and do not connect the battery cable while installing the driver's seat position sensor.

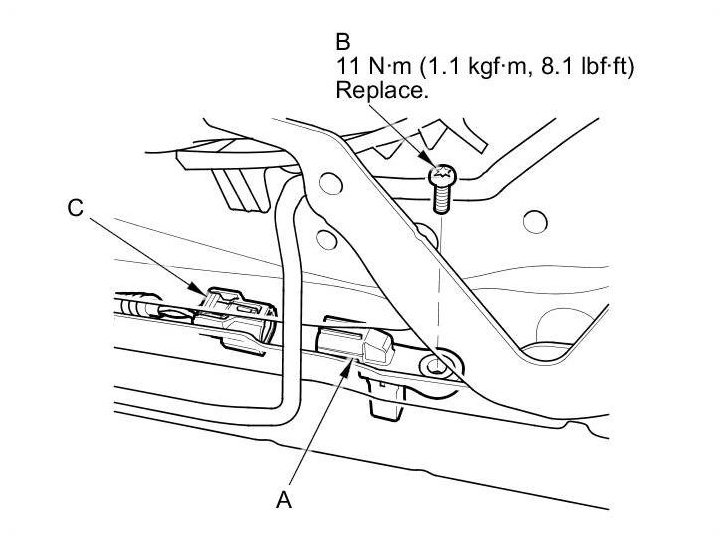

1. Install the driver's seat position sensor (A) with a new TORX bolt (B).





2. Connect the driver's seat position sensor 2P connector (C) on the driver's seat position sensor harness.

3. Install the recline cover Front Seat Recline Cover Removal/Installation.

4. Do the battery terminal reconnection procedure.

5. Clear any DTCs with the HDS.

6. Check the operation of the driver's seat position sensor with the HDS Testing and Inspection.

7. Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
