A/T Differential Carrier And Final Driven Gear Replacement
A/T Differential Carrier and Final Driven Gear Replacement 1.

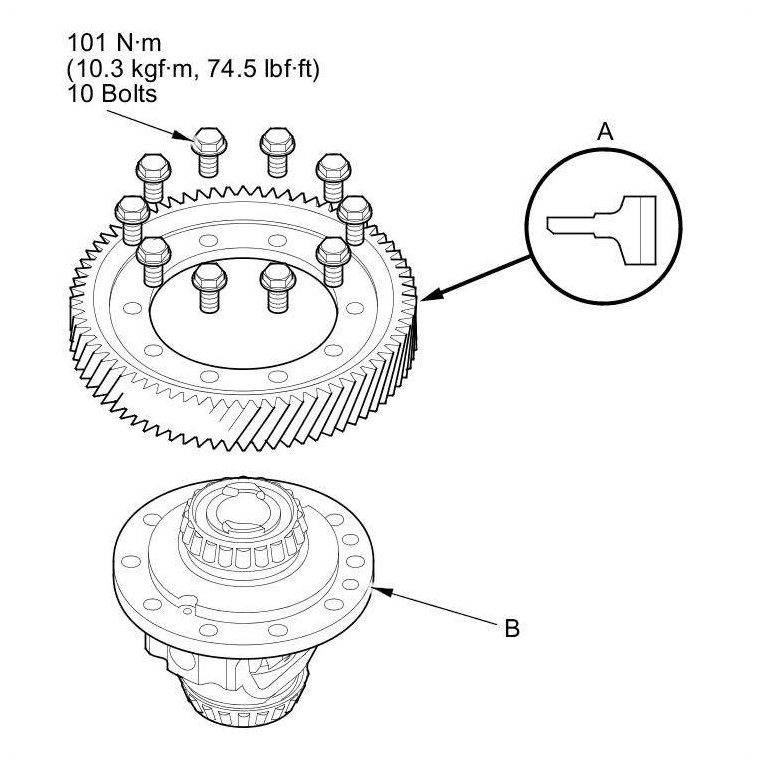

Remove the final driven gear (A) from the differential carrier (B). The final driven gear bolts have left-hand threads.
2.
Install the final driven gear on the differential carrier in the direction shown.
3.
Tighten the bolts to 101 Nm (10.3 kg-m, 74.5 lb-ft) in a crisscross pattern in at least two steps.
