Torque Converter Housing Countershaft Bearing Replacement




Torque Converter Housing Countershaft Bearing Replacement

Special Tools Required

- Adjustable Bearing Puller, 25-40 mm 07736-A01000B
- Driver Handle, 15 x 135L 07749-0010000
- Oil Seal Driver Attachment, 58 mm 07JAD-PH80101

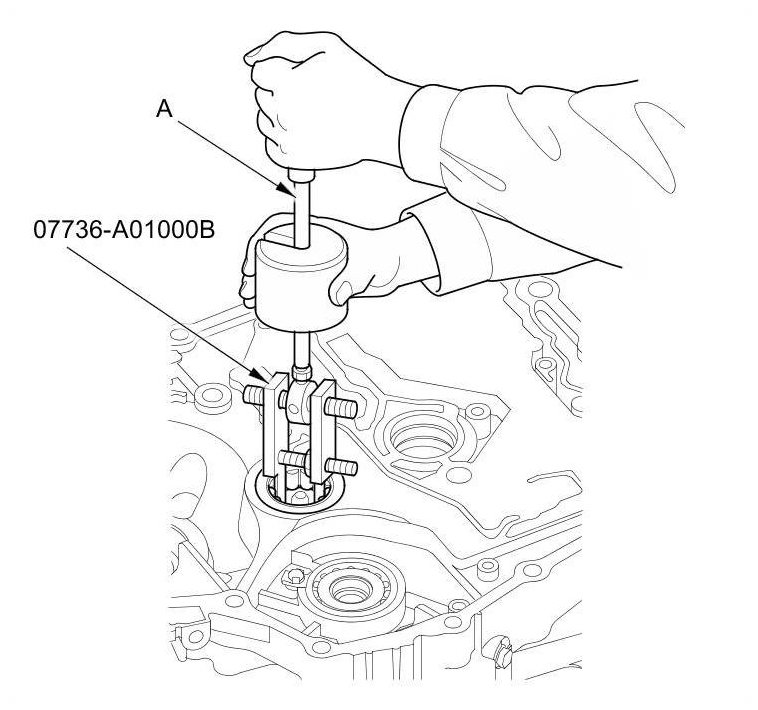

1. Remove the countershaft bearing using the adjustable bearing puller (20-40 mm) and a commercially available 3/8''-16 slide hammer (A).






2. Install the ATF guide plate (A).

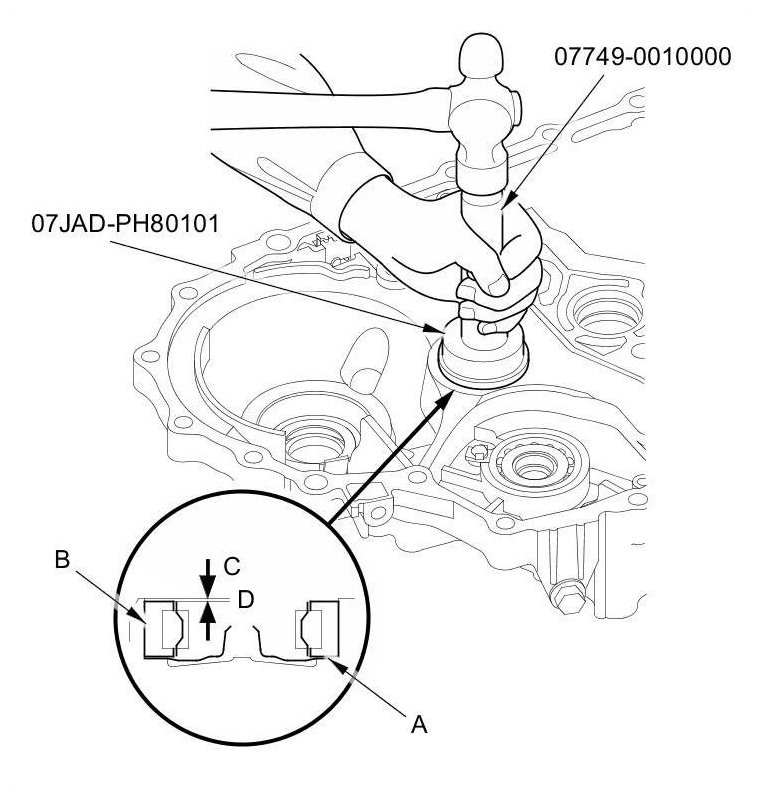

3. Install the new countershaft bearing (B) in the housing using the driver handle and the oil seal driver attachment (58 mm); install the bearing outer race surface in height (C) of 0-0.03 mm (0-0.001 in) above the housing surface (D). Do not install the bearing exceeding 0.03 mm (0.001 in) high from housing surface.
