Transmission End Cover Selector Control Shaft Bearing Replacement

Transmission End Cover Selector Control Shaft Bearing Replacement

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Bearing Driver Attachment, 22 x 24 mm 07746-0010800

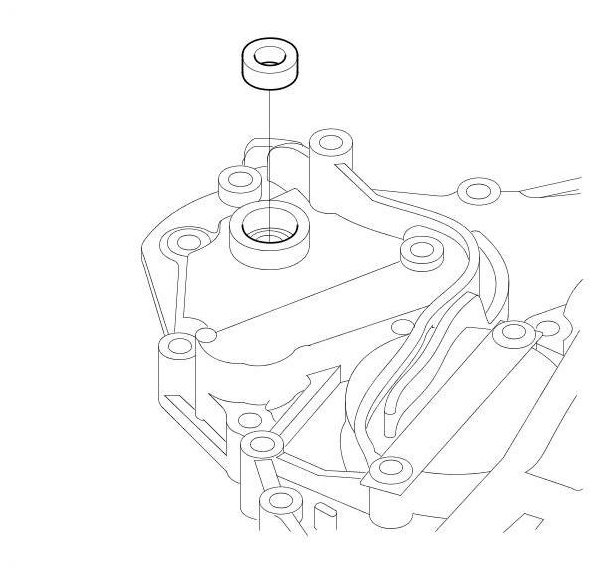

1. Remove the oil seal from the end cover.

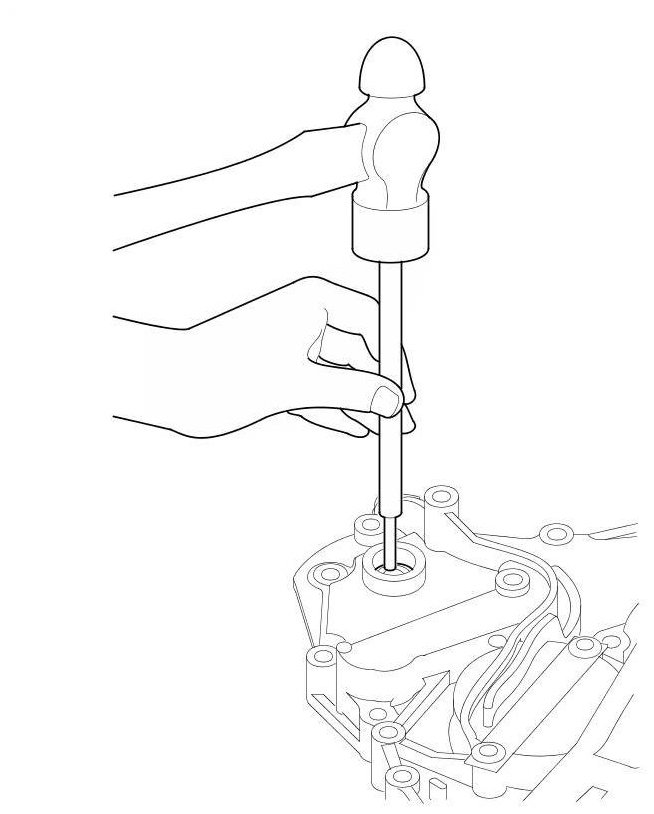

2. Remove the control shaft bearing from the end cover.

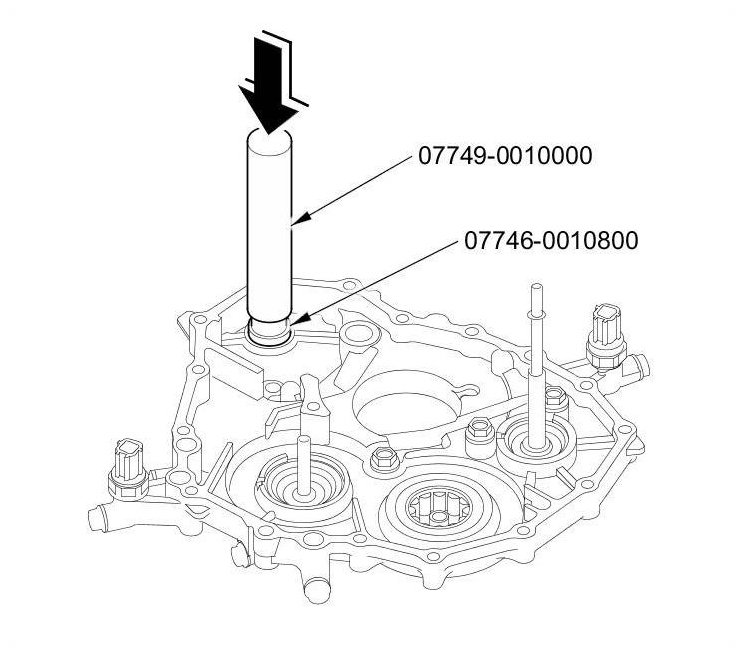

3. Install the new bearing flush with the end cover using the driver handle and the bearing driver attachment (22 x 24 mm).

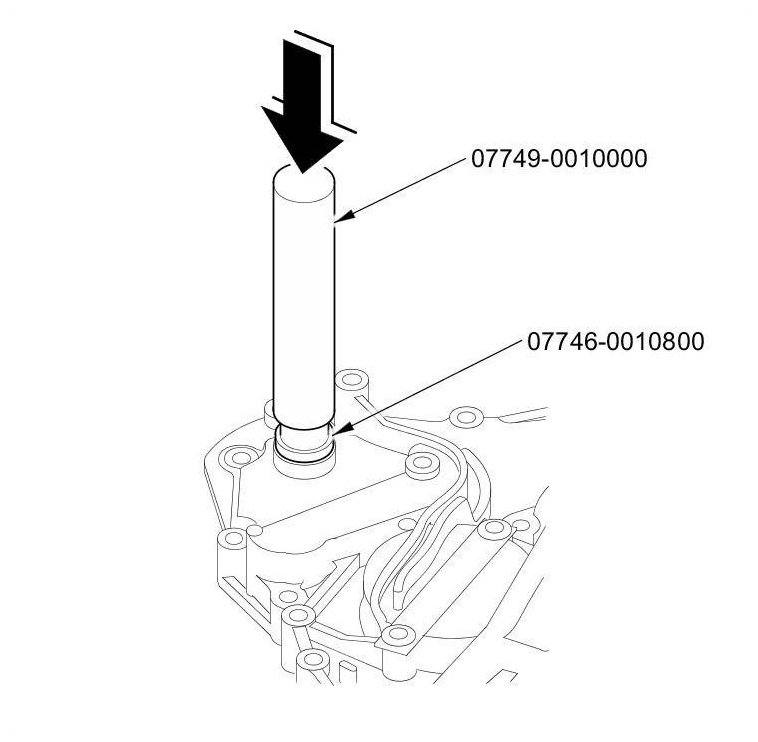

4. Install the new oil seal flush with the end cover using the driver handle and the bearing driver attachment (22 x 24 mm).
