Transmission End Cover Transmission Fluid Pressure Switch Replacement

Transmission End Cover Transmission Fluid Pressure Switch Replacement

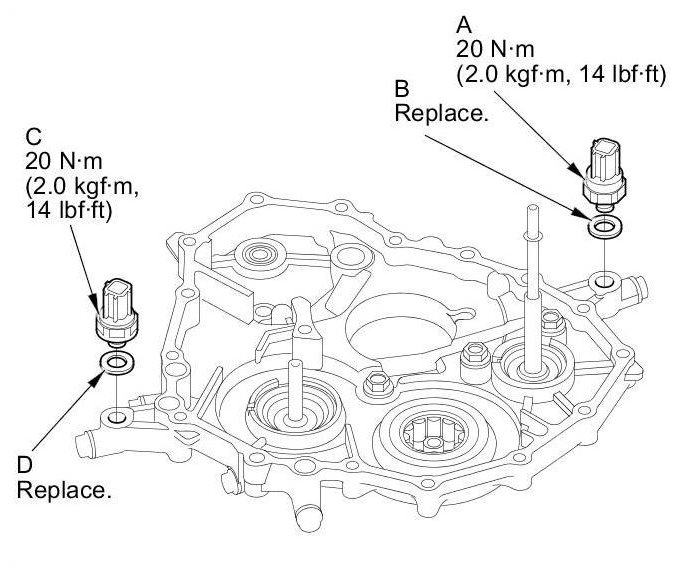

1. Remove the transmission fluid pressure switch A (2nd clutch) (A).





2. Make sure there is no water, oil, dust, or foreign particles inside the connector.

3. Install the new transmission fluid pressure switch A (2nd clutch) and a new sealing washer (B), and tighten the metal part of the switch.

4. Remove the transmission fluid pressure switch B (3rd clutch) (C).

5. Make sure there is no water, oil, dust, or foreign particles inside the connector.

6. Install the new transmission fluid pressure switch B (3rd clutch) and a new sealing washer (D), and tighten the metal part of the switch.
