Clutch Pedal Assembly: Service and Repair




Clutch Pedal Assembly Replacement

NOTE: Without cruise control: The adjusting bolt is substituted as clutch pedal position switch.

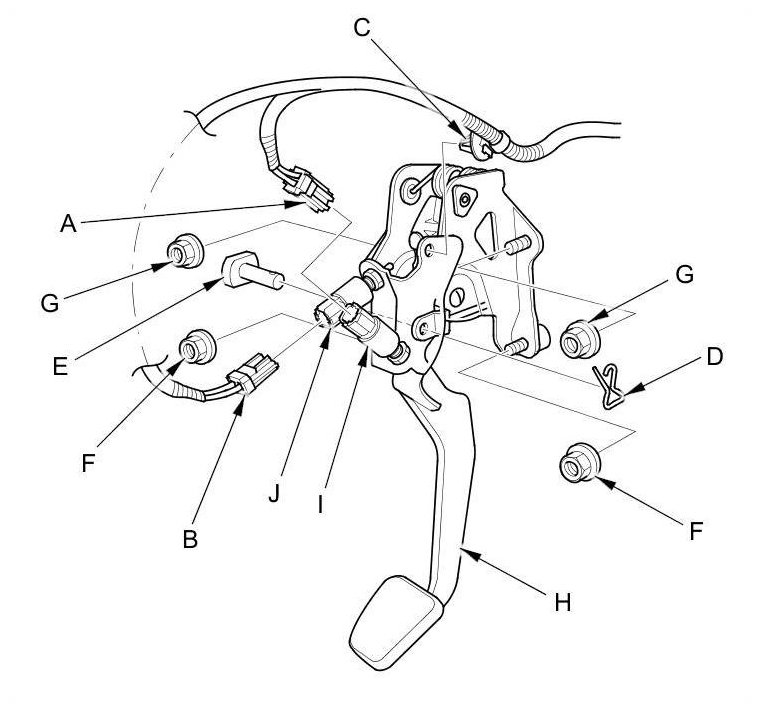

1. Disconnect the clutch pedal position switch connector (A) and the clutch interlock switch connector (B). Remove the harness clip (C).





2. Pry out the lock pin (D), and pull the clevis pin (E) out of the clevis.

3. Remove the master cylinder mounting nuts (F) and clutch pedal mounting nuts (G).

4. Remove the clutch pedal assembly (H).

5. Remove the clutch pedal position switch (I) and the clutch interlock switch (J).

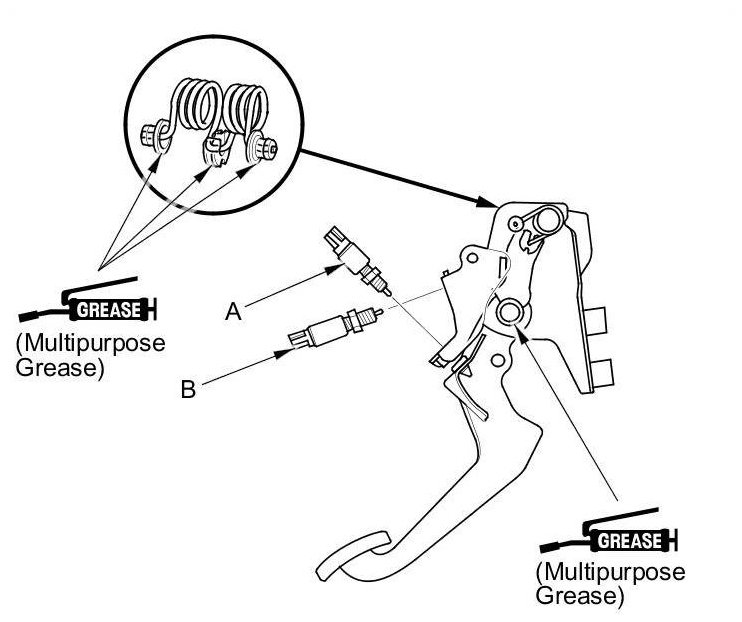

6. Loosely install the clutch pedal position switch (A) and the clutch interlock switch (B).

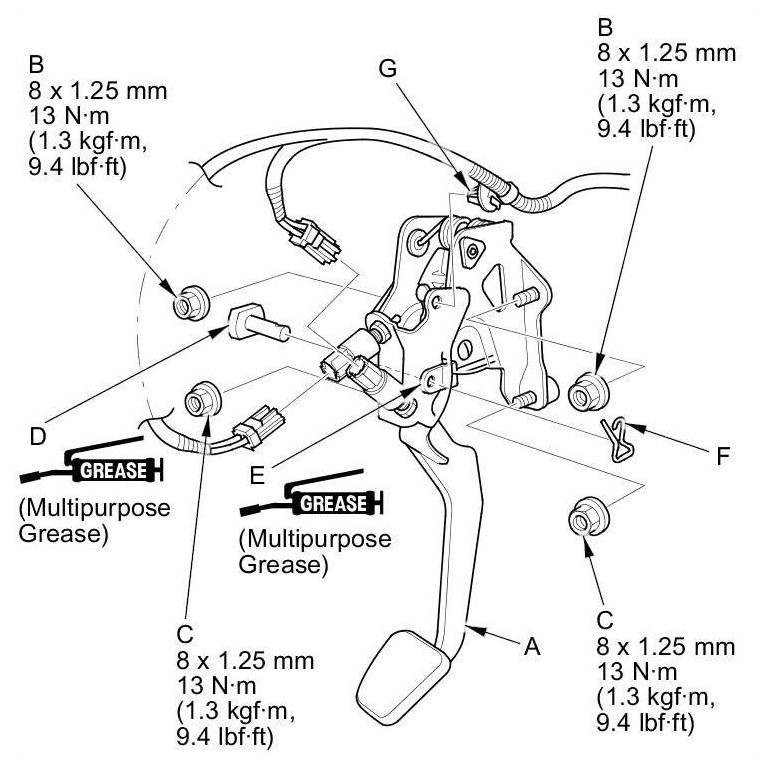

7. Install the clutch pedal assembly (A).





8. Install the clutch pedal mounting nuts (B) and the master cylinder mounting nuts (C).

9. Apply multipurpose grease to the clevis pin (D) and the mating surfaces (E) of the clevis and the pedal.

Slide the clevis pin into the clevis, then install the lock pin (F).

10. Adjust the clutch pedal, the clutch pedal position switch, and the clutch interlock switch Adjustments.

NOTE: Connect the switch connectors after adjusting them.

11. Install the harness clip (G).

12. Check the clutch operation.
