M/T Shift Lever Housing Replacement

M/T Shift Lever Housing Replacement

NOTE: Take care not to scratch the center console, dashboard, and related parts.

1. Remove the center console Service and Repair.

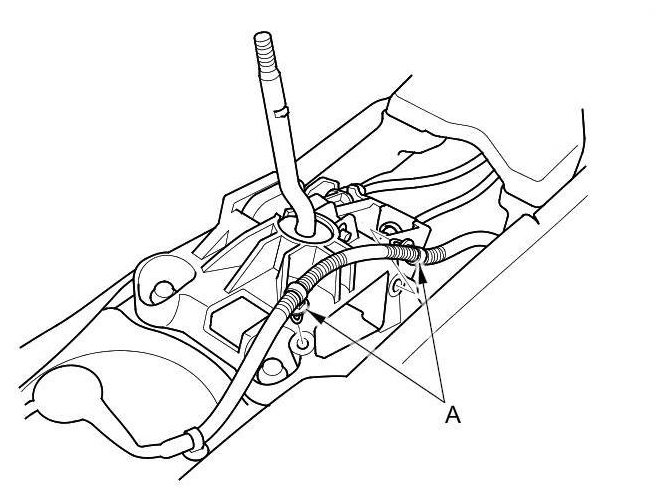

2. Remove the harness clamps (A).

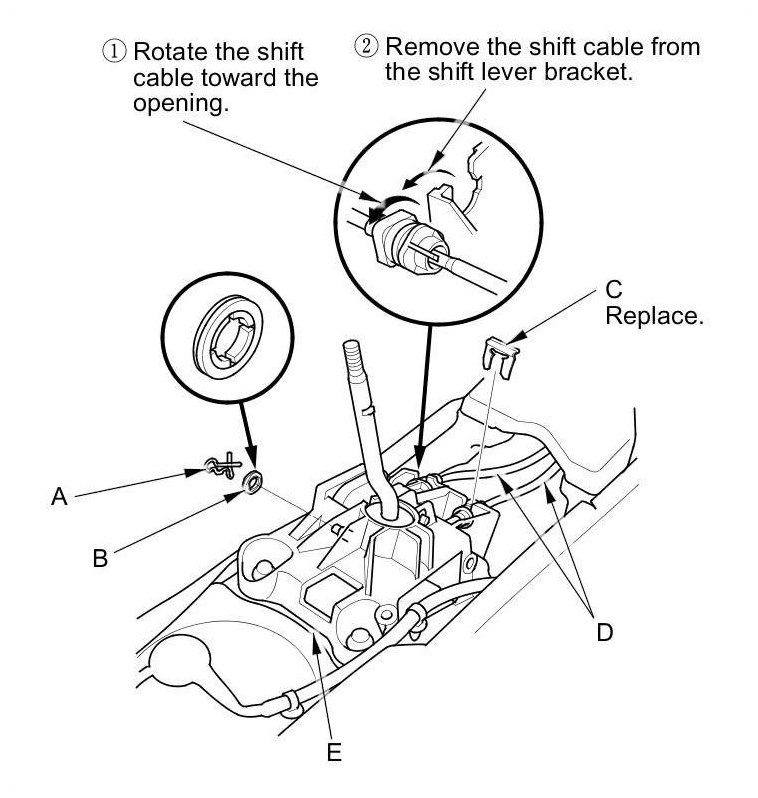

3. Remove the lock pin (A), the washer (B), the shift cable clip (C), and the shift cables (D) from the shift lever housing assembly (E).

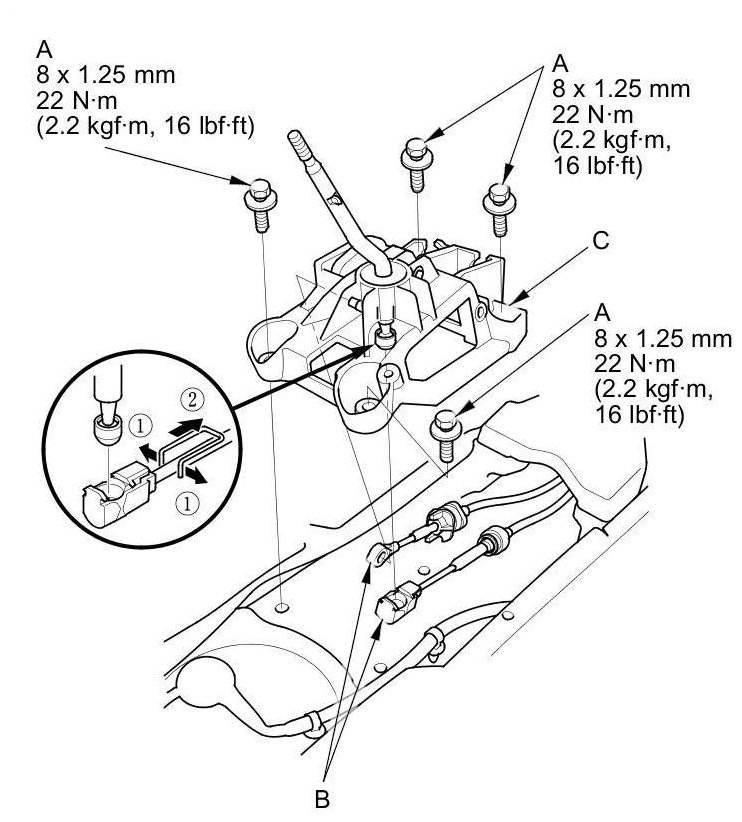

4. Remove the four bolts (A). Disconnect the shift cables (B) from the shift lever, then remove the shift lever housing (C).





5. Install the shift lever housing in the reverse order of removal.
