Power Window Switch: Testing and Inspection




Passenger's Power Window Switch Test

1. Remove the grip cover:

- Front passenger's Service and Repair
- Rear Rear Door Panel Removal/Installation

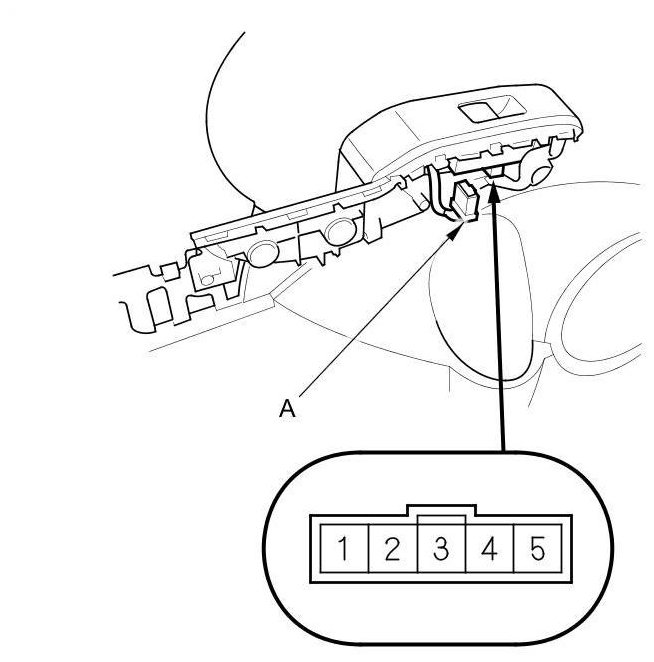

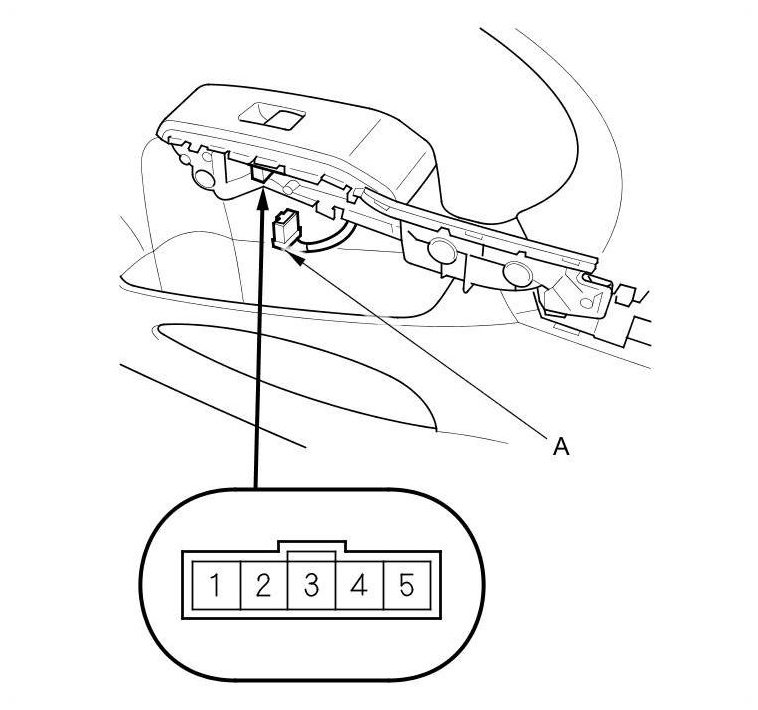

2. Disconnect the 5P connector (A) from the passenger's window switch.

Front passenger's





Rear

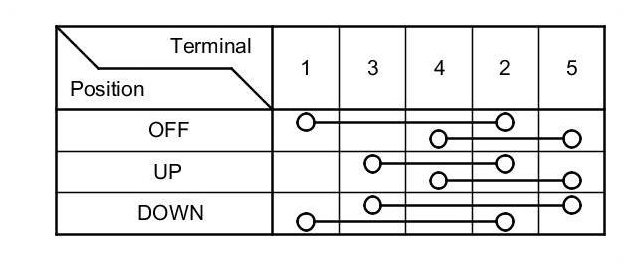

3. Check for continuity between the terminals in each switch position according to the table.





4. If the continuity is not as specified, replace the switch Passenger's Power Window Switch Replacement.
