Hatch Outer Handle Switch Test/Replacement

Hatch Outer Handle Switch Test/Replacement

1. Remove the hatch lower trim panel Interior Trim Removal / Installation - Hatch Areas.

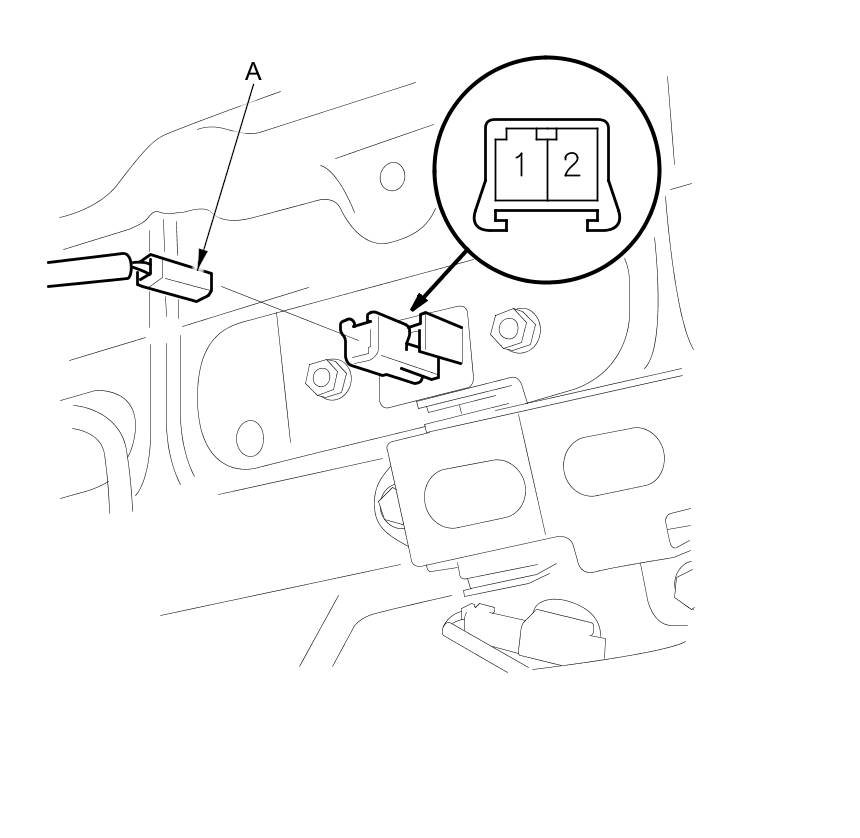

2. Disconnect the 2P connector (A) from the hatch outer handle switch.





3. Check for continuity between hatch outer handle switch 2P connector terminals No. 1 and No. 2.

- There should be continuity when the hatch outer handle switch is pressed.
- There should be no continuity when the hatch outer handle switch is released.

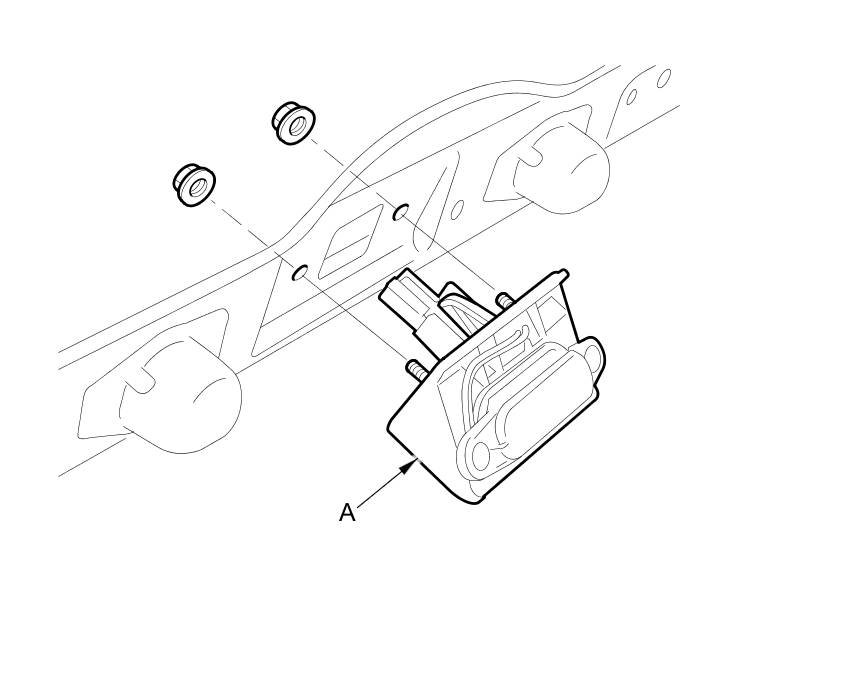

4. If the continuity is not as specified, the switch is faulty; replace the hatch outer handle switch (A).
